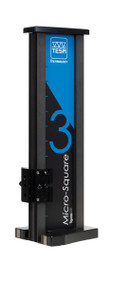

TESA MICRO-SQUARE 600 Set 31, 610mm Range - 05330401
Brand: TESA Brown & Sharpe- SKU:
- 05330401
- ID:
- 461062
Perpendicularity frontal [μm] | 2,4 |
Height | 697mm |
$8,295.00
TESA MICRO-SQUARE 600 Set 31, 610mm Range - 05330401
- The TESA MICRO-SQUARE is the ultimate perpendicularity measuring instrument for professionals looking for the highest precision.
- The slide is mounted on a high-precision guideway and ensures a movement guaranteeing a measurement repeatability of 0,5 μm.
- This mechanism combined with the GT 31 inductive probe and the TWIN-T10 display unit allows the result to be displayed quickly.
- It is therefore the ideal complement to our famous height gauges for the most precise controls.
- High precision (1,5 μm for 350 version)
- Quick measurement
- Usable in the workshop
- Simple handling
- TESA inductive lever test indicators TESA GT 31 with Ø 2 mm measuring insert, 03210802*
- Portable probe display unit TESA TWIN-T10, 04430013* SCS calibration certificate
- Repeatability [μm]: 0,5 Measuring application with GT21 probe and TESATRONIC at 20°C
- Width: 140mm
- Depth: 167mm
- User manual SCS calibration certificate
Set Includes:
04430013: TWIN-T10 display
05310401: MICRO-SQUARE 600
03210802: GT31 probe, ± 0,3 mm, F = 0,1 N
