TMX 10" Head for MT4 Pipe Live Center with Interchangeable Heads - 3-573-0403P
Brand: TMX- SKU:
- 3-573-0403P
- ID:
- 363253
| Morse Taper | 4 MT |
| Weight | 32.6 lbs. |
| Max Speed | 3500 RPM |
| Max Workpiece Wt. | 2205 lbs. |
| T.I.R. | 0.002" |
$477.26
TMX 10" Head for MT4 Pipe Live Center with Interchangeable Heads - 3-573-0403P
- 10.0in. Head for MT4 Pipe Live Center with Interchangeable Heads, TMX by Toolmex MADE IN EUROPE (Compare to Bison® Models 8882 & 8883 - Series 7-573)
Specifications:
| Item | Pipe Live Center | |
| Type | Head only | |
| Morse Taper | 4 | |
| T.I.R. | in | 0.002 |
| Max Wt of Workpiece | lb | 2205 |
| Maximum Speed | RPM | 3500 |
| Weight | lb | 32.6 |

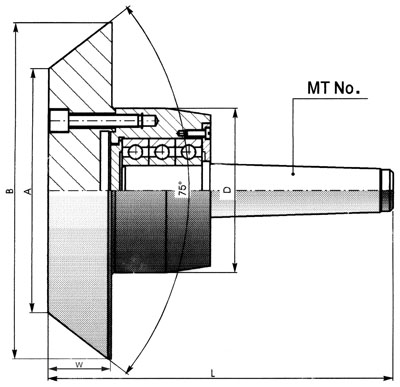

| A | in | 7.68 |
| B | in | 9.84 |
| D | in | 3.86 |
| L | in | 8.11 |
| W | in | 1.57 |
See all TMX Precision Live Centers
