TMX 4-Jaw Plain Back Steel Scroll Chuck, 6in - 3-841-0600P
Brand: TMX- SKU:
- 3-841-0600P
- ID:
- 359859
| Chuck Size | 6" |
| Gripping Force | 3100 daN |
| Max RPM | 4600 RPM |
| Weight | 22 lbs. |
$979.00
TMX 4-Jaw Plain Back Steel Scroll Chuck, 6in
3-841-0600P
4-Jaw (2 Piece) Scroll Chuck, Steel, 6in
TMX by Toolmex MADE IN EUROPE
Precision Forged Steel
4-Jaw Scroll Chuck with Two-Piece Hard Reversible Jaws
Made in Poland, available in many sizes and configurations.
Each chuck is provided with:
- 1 Set of hard master jaws
- 1 Set of hard top reversible jaws
- 1 Chuck wrench
- 1 Set of mounting bolts
- Eye bolts for chuck sizes 15-3/4" diameter and larger
Technical Data:
  |
| Selling Unit | EA | |
| Chuck Type | Scroll | |
| Chuck Size | in | 6 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 22 |
| Mount Type | Back | |
| Gripping Force | daN | 3100 |
| Max RPM | RPM | 4600 |

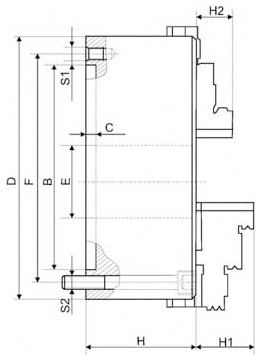

| Diameter D | in | 6.299 |
| Recess Diameter B | in | 4.9213 |
| Recess Depth C | in | 0.1575 |
| Hole Diameter E | in | 1.6535 |
| Bolt Circle F | in | 5.5118 |
| Body Height H | in | 2.5394 |
| Jaw Height H1 | in | 1.7323 |
| Hole Thread Size S | 6xM10 |

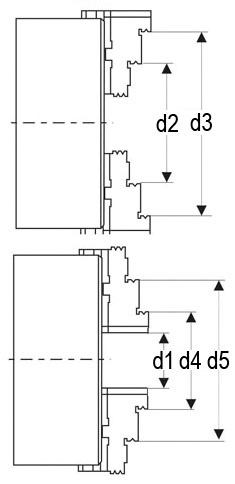

| d1 Two-Piece Jaws | in | 0.118 - 2.52 |
| d2 Two-Piece Jaws | in | 2.44 - 4.76 |
| d3 Two-Piece Jaws | in | 4.53 - 6.30 |
| d4 Two-Piece Jaws | in | 1.65 - 3.81 |
| d5 Two-Piece Jaws | in | 3.46 - 5.75 |
