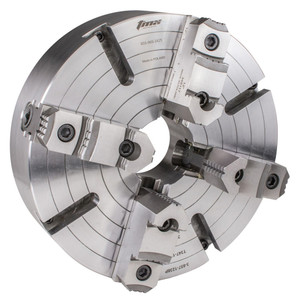

TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 10" D1-6, 2.56" Hole - 3-857-1036P
Brand: TMX- SKU:
- 3-857-1036P
- ID:
- 363842
| Chuck Size | 10" |
| Mount | D1-6 |
| Hole | 2.56" |
| Max RPM | 2000 RPM |
| Weight | 58 lbs. |
$2,295.00
TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 10" D1-6, 2.56" Hole - 3-857-1036P
4-Jaw (2Pc) Independent Forged Steel Body Chuck
10" D-6, 2.56" Hole
TMX by Toolmex, MADE IN EUROPE
Technical Data:
 |
| Selling Unit | EA | |
| Chuck Type | Independent | |
| Chuck Size | in | 10 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 58 |
| Mount | D1-6 | |
| Max RPM | RPM | 2000 |
| Camlock Stud Diameter | in | 7/8 |
| Camlock Stud Quantity | 6 | |
| Camlock Stud Thread | M16x1.5 |

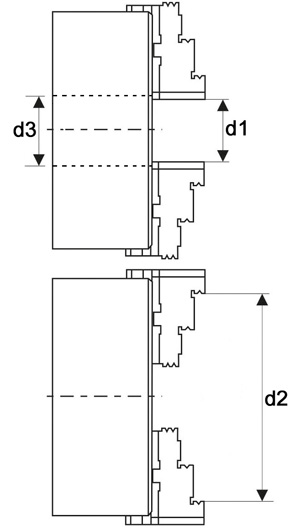

| d1 Two-Piece Jaws | in | 0.394 |
| d2 Two-Piece Jaws | in | 9.843 |
 |

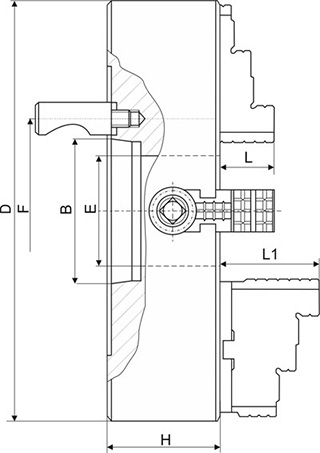

| Diameter D | in | 9.843 |
| Recess Diameter B | in | 4.188 |
| Hole Diameter E | in | 2.559 |
| Stud Circle Diameter F | in | 5.252 |
| Body Height H | in | 3.091 |
| Jaw Height L1 (Two-piece Jaws) | in | 2.051 |
See all TMX 4-Jaw Type D Direct Mount Independent Lathe Chucks
