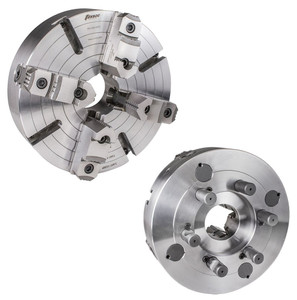

TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 12" D1-8, 3.15" Hole - 3-857-1238P
Brand: TMX- SKU:
- 3-857-1238P
- ID:
- 363814
| Chuck Size | 12" |
| Mount | D1-8 |
| Hole | 3.15" |
| Max RPM | 1500 RPM |
| Weight | 107 lbs. |
$3,795.00
TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 12" D1-8, 3.15" Hole - 3-857-1238P
4-Jaw (2Pc) Independent Forged Steel Body Chuck
12" D-8, 3.15" Hole
TMX by Toolmex, MADE IN EUROPE
Technical Data:
 |
| Selling Unit | EA | |
| Chuck Type | Independent | |
| Chuck Size | in | 12 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 107 |
| Mount | D1-8 | |
| Max RPM | RPM | 1500 |
| Camlock Stud Diameter | in | 1 |
| Camlock Stud Quantity | 6 | |
| Camlock Stud Thread | M20x1.5 |
| d1 Two-Piece Jaws | in | 0.59 |
| d2 Two-Piece Jaws | in | 12.402 |
 |
| Diameter D | in | 12.402 |
| Recess Diameter B | in | 5.501 |
| Hole Diameter E | in | 3.150 |
| Stud Circle Diameter F | in | 6.748 |
| Body Height H | in | 3.425 |
| Jaw Height L1 (Two-piece Jaws) | in | 2.244 |
See all TMX 4-Jaw Type D Direct Mount Independent Lathe Chucks
