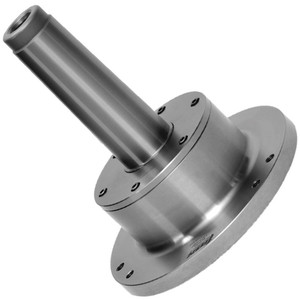

TMX 8" Rotating Body with MT5 Shank - 3-573-085P
Brand: TMX- SKU:
- 3-573-085P
- ID:
- 363198
| Morse Taper | 5 MT |
| Weight | 49 lbs. |
| Max Speed | 2800 RPM |
| Max Workpiece Wt. | 550 lbs. |
| T.I.R. | - |
$2,195.00
TMX 8" Rotating Body with MT5 Shank - 3-573-085P
- Rotating Body 8in with MT5 Shank for 8in Chucks and Pipe Live Center Tapered Heads, TMX by Toolmex MADE IN EUROPE (Compare to Bison® Models 8882 & 9157- Series 7-573)
Specifications:
| Item | Rotating Body | |
| Type | Body Only | |
| Morse Taper | 5 | |
| Weight | lb | 49 |
| Maximum Speed | RPM | 2800 |
| Max Weight of Workpiece | lb | 550 |
| T.I.R. | in | 0.0008 |
| Diameter D | in | 7.874 |
| Boss Diameter D1 | in | 6.299 |
| Point Length C | in | 0.138 |
| Bolt Circle Diameter D2 | in | 6.929 |
| Overall Length L1 | in | 9.212 |
| Gage Length L2 | in | 4.291 |
| Projection Length L3 | in | 3.858 |
| Hole Thread Size M | in | M10 |
See all TMX Precision Live Centers
