TMX Boring Bar, SI-MCLNR 16-4 for Negative 80° CNM Inserts, Right Hand, 1" Shank Dia., 12" Length - 6-760-164R
Brand: TMX- SKU:
- 6-760-164R
- ID:
- 171260
Style | SI-MCLNR 16-4 |
Hand | Right Hand |
Shank Dia d | 1" |
Length L | 12" |
Head F | 0.64" |
Min Bore D | 1.28 mm |
Insert Size | 43x |
$149.95
TMX Boring Bar, SI-MCLNR 16-4 for Negative 80° CNM
Inserts, Right Hand, 1" Shank Dia., 12" Length
6-760-164R

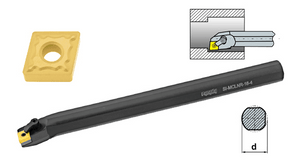

SI-MCLNR Style, Right hand, 1 Inch Dia. Boring bar with -5° Lead for CNxx 43x Inserts
Boring Bar for Negative 80º Diamond CNM Inserts
(without coolant hole), SI-MCLNR
Features:
- SI-MCLN R/L BORING BAR Style L – Negative 5° Side & End Cutting Edge Angle for negative 80° diamond CNM_ inserts
- M Style Clamping for Maximum Rigidity
- Utilizes industry standard hardware
- Hardened to 42-44 Rc
- Tools accept standard ISO/ANSI Inserts
Technical Data:
Style | SI-MCLNR 16-4 | |
Shank Diameter d | in | 1 |
Length L | in | 12 |
Head F | in | 0.64 |
Minimum Bore D | 1.28 | |
Insert Geometry | CN__ | |
Insert Size | ASA | 43_ |
Tolerances | ||
Tolerance: Kr = | +/- 1° | |
Tolerance: F = | +0.0/-0.01 mm | |
Tolerance: dØ = | +0.0/-0.002 mm | |
Tolerance: L = | +0.114/-0.0 mm | |
D min = | 1.280 mm |
Spare Parts | ||
Shim | 6-998-6009 | |
Shim Screw | 6-998-6543 | |
Lock Pin | 6-998-6265 | |
Clamp | 6-998-6415 | |
Clamp Screw | 6-998-6526 | |
Hex Key | 6-998-150 | |
Hex Key 2 | 6-998-153 | |
Anti Seize Lube | 290-ASEIZE-03 | |
2015 TMX Cutting Tools Catalog | Page | 188 |
See all TMX Boring Bars, AI/SI-MCLN R/L for Negative 80° CNM Inserts
