TMX Boring Bar with Coolant Hole, AI-MCLNL 20-4T for Negative 80° CNM Inserts, Left Hand, 1.25" Shank Dia., 14" Length - 6-760-604L

Brand:   TMX
SKU:
6-760-604L
ID:
360457
Style AI-MCLNL 20-4T
Hand Left Hand
Shank Dia d 1.25"
Length L 14"
Head F 0.765"
Min Bore D 1.53 mm
Insert Size 43x
$239.95
Current Stock:
Adding to cart… The item has been added

TMX Toolmex

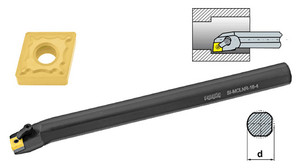

TMX Boring Bar with Coolant Hole, AI-MCLNL 20-4T for Negative 80° CNM Inserts, Left Hand, 1.25" Shank Dia., 14" Length - 6-760-604L


AI-MCLNL Style, Left hand, 1-1/4 Inch Dia. COOLANT-THRU Boring bar with -5° Lead for CNxx 43x Inserts


Boring Bar for Negative 80º Diamond CNM Inserts
(with coolant hole), AI-MCLNL


Features:

  • AI-MCLN R/L BORING BAR Style L – Negative 5° Side & End Cutting Edge Angle for negative 80° diamond CNM_ inserts
  • M Style Clamping for Maximum Rigidity
  • Utilizes industry standard hardware
  • Hardened to 42-44 Rc
  • Tools accept standard ISO/ANSI Inserts


Technical Data:

Style   AI-MCLNL 20-4T
Shank Diameter d in 1.25
Length L in 14.0
Head F in 0.765
Minimum Bore D   1.53
Insert Geometry   CN__
Insert Size ASA 43_
Tolerances
Tolerance: Kr =   +/- 1°
Tolerance: F =   +0.0/-0.01 mm
Tolerance: dØ =   +0.0/-0.002 mm
Tolerance: L =   +0.014/-0.0 mm
D min =   1.280 mm



Spare Parts
Shim   6-998-6009
Shim Screw   6-998-6543
Lock Pin   6-998-6265
Clamp   6-998-6415
Clamp Screw   6-998-6526
Hex Key   6-998-150
Hex Key 2   6-998-153
Anti Seize Lube   290-ASEIZE-03
2015 TMX Cutting Tools Catalog Page 188



See all TMX Boring Bars, AI/SI-MCLN R/L for Negative 80° CNM Inserts
