TMX CAT50 Stub Milling Arbor Holder, 1-1/2" x 10" - 8-162-5035

Brand:   TMX
SKU:
8-162-5035
ID:
82503
Taper CAT50
Arbor Dia d 1-1/2"
Major Dia d1 2-1/8"
Gage Length A 6"
B 2"
Overall Length L 10"
$489.57
Current Stock:
Adding to cart… The item has been added

TMX

TMX CAT50 Stub Milling Arbor Holder, 1-1/2" x 10"
8-162-5035

  • CAT50 Stub Arbor Holder
  • 1-1/2 x 10
  • TMX Made in Europe
  • (Previously part number was 7-191-535)


Features:

  • Face is held perpendicular to centerline within 0.0002"
  • Pilot diameter is sized for precision fit with cutter, and keyed for positive drive
  • Heavy duty locking right-hand nut and 5 arbor spacers are included: 1/16", 1/8", 1/4", 3/8", and 3/4"
  • Retention knobs sold separately
  • Draw Bar Threads: CAT 40 5/8"-11 and CAT 50 1"- 8


Specifications:

Taper   CAT50
Arbor Diameter (d) in 1.5
Major Dia (d1) in 2.125
Gage Length (A) in 6
(B) in 2
Overall Length (L) in 10
Weight lb 16.0

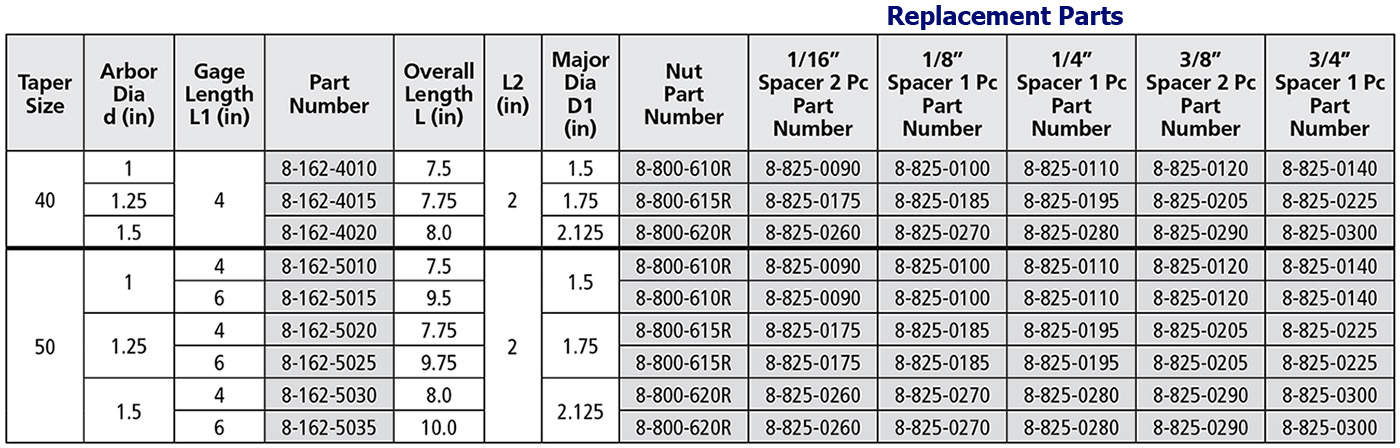

Click to view Replacement Parts (Call for Pricing & Ordering)



See all TMX CAT-V Flange Stub Milling Arbor Holders
