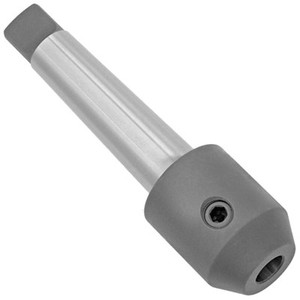

TMX End Mill Holder Morse Taper Shank Style B Draw Bar End MT3 - 5/8 - 8-511-1040
Brand: TMX- SKU:
- 8-511-1040
- ID:
- 359694
| MT Shank | 3 |
| Hole Diameter | 5/8in |
| Set Screw Thread | 9/16-18 x 15/32 |
| Gage Length | 3.976in |
$68.26
TMX End Mill Holder Morse Taper Shank Style B Draw Bar End MT3 - 5/8 - 8-511-1040
End Mill Holder Morse Taper Shank Style B Draw Bar End MT3 - 5/8 TMX Made in Europe
- Made of Alloy Forged Steel for a long durable service life
- Hardened to RC 56-60 and ground to ensure maximum accuracy
- .0002” TIR or better to ensure minimal run-out
- Each set is provided with a wooden case
- 7/8” holders and larger are provided with two set screws
Specifications:
| MT Shank | 3 | |
| Hole Diameter | in | 5/8 |
| Set Screw Thread | 9/16-18 x 15/32 | |
| Gage Length | in | 3.976 |
| Style | A/B | B, Draw Bar end |
| Manf. Model # | 7721 |
See all TMX End Mill Holders with MT Shank (Style B Draw Bar)
