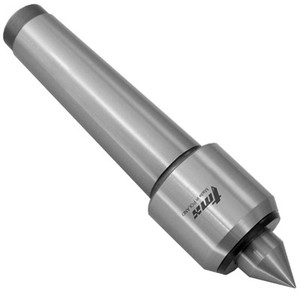

TMX Slim Casing Live Center, MT6 - 3-560-006P
Brand: TMX- SKU:
- 3-560-006P
- ID:
- 363232
| Morse Taper | 6 MT |
| Weight | 17 lbs. |
| Max Speed | 3000 RPM |
| Max Workpiece Wt. | 7720 lbs. |
| T.I.R. | - |
$526.14
TMX Slim Casing Live Center, MT6 - 3-560-006P
- Slim Casing Live Center MT6, Type 8812-6R TMX by Toolmex MADE IN EUROPE
- Download Axial Load and Radial Load here
Specifications:
| Item | Live Center | |
| Type | Slim Casing | |
| Morse Taper | 6 | |
| Weight | lb | 17 |
| Maximum Speed | RPM | 3000 |
| Max Weight of Workpiece | lb | 7720 |

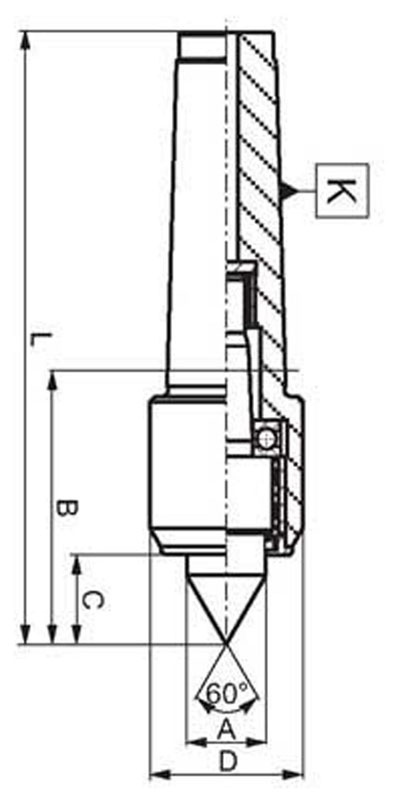

| Overall Length L | in | 12.756 |
| Projection Length B | in | 5.571 |
| Point Length C | in | 1.929 |
| Diameter D | in | 3.150 |
| Point Diameter A | in | 1.654 |
See all TMX Precision Live Centers
