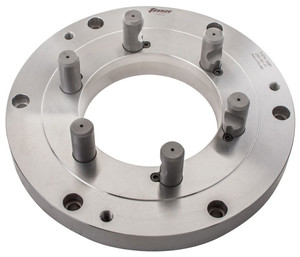

TMX Type D Backplate for Scroll Chucks, 6in D1-6 - 3-878-066P
Brand: TMX- SKU:
- 3-878-066P
- ID:
- 357516
$757.95
TMX Type D Backplate for Scroll Chucks, 6in D1-6
3-878-066P
Fully finished to precisely fit TMX plain back chucks without any additional machining.
Compare to Bison® Models 8240 & 8242 – Series 7-878
Back Plate D Taper, 6in D1-6
Fully Finished
TMX by Toolmex
MADE IN EUROPE
Technical Details:
| Selling Unit | EA | |
| Mount | D1-6 | |
| Chuck Diameter | in | 6.3 |
| Chuck Type | Scroll | |
| Machined | Fully Finished | |
| Weight | lb | 4.85 |

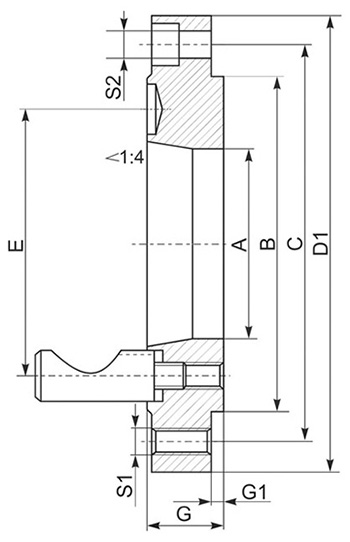

| A | in | 3.1299 |
| B | in | 4.9213 |
| C | in | 5.5118 |
| D1 | in | 6.2992 |
| E | in | 4.126 |
| G | in | 1.1811 |
| G1 | in | 0.1378 |
| S1 | 6xM10 | |
| S2 | 6x10.5 |
