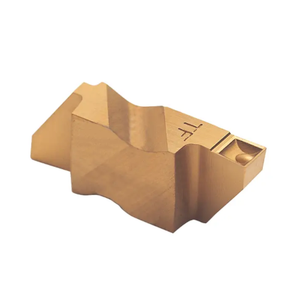

Tool-Flo CHIP-FLO Indexable Carbide Top Clamp Grooving Insert FLG-3031L-CB AC50C, Left Hand
Brand: Tool-Flo- SKU:
- 22-200-001
- ID:
- 373582
$34.95
Tool-Flo CHIP-FLO Indexable Carbide Top Clamp Grooving Insert FLG-3031L-CB AC50C, Left Hand
- Top Clamp Inserts for Grooving
- Insert Style: FLG
- Grade: AC50C - For General Purposes
- Gage Diameter: 0.3750"
- ANSI Range: C5
- ISO Range: P10-P35
- Coating: TiN Coated
- Extremely strong clamping method
- Double sided for two cutting edges
- Country of Origin: U.S.A.
| Cutting Width W | Radius | Max. Depth of Cut E | Insert Width T | Insert Height A | Tip to Center B |
| 0.031" | 0.002"-0.005" | 0.050" | 0.195" | 0.344" | 0.4050" |
