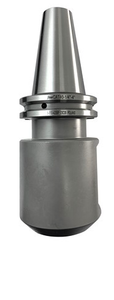

Toolmex CAT40 End Mill Holder 1-1/4" ID (D1) x 4" Gage Length (L1) - 8-110-4235P

Brand: TMX

SKU:: 8-110-4235P

ID:: 679595

callling

$138.95

Current Stock:

Adding to cart… The item has been added

Toolmex CAT40 End Mill Holder 1-1/4" ID (D1) x 4" Gage Length (L1) - 8-110-4235P

Balanced to 25,000 RPM at G2.5
Taper ground to AT3 specification for maximum spindle contact
H5 bore tolerance for improved concentricity and tool life
Coolant Spindle-thru capability (AD)
Balanced collet nut is included
Flange Screw Size: M4 x .7 x 4mm
Pull stud thread is 5/8"-11

Major Diameter (D2)	2.50"
Locking Screw 1 Position (L2)	.83"
L3	.90"
# of Side Locking Set Screws	2
Socket Set Screw Size (dia - pitch x length)	3/4 - 16 x 45/64

For More Toolmex CAT40 End Mill Holders Click Here
