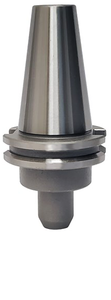

Toolmex CAT40 End Mill Holder 1/4" ID (D1) x 1-3/8" Gage Length (L1) - 8-110-4040P
Brand: TMX- SKU:
- 8-110-4040P
- ID:
- 679566
$95.95
Toolmex CAT40 End Mill Holder 1/4" ID (D1) x 1-3/8" Gage Length (L1) - 8-110-4040P
- Balanced to 25,000 RPM at G2.5
- Taper ground to AT3 specification for maximum spindle contact
- H5 bore tolerance for improved concentricity and tool life
- Coolant Spindle-thru capability (AD)
- Balanced collet nut is included
- Flange Screw Size: M4 x .7 x 4mm
- Pull stud thread is 5/8"-11
| Major Diameter (D2) | .81" |
| Locking Screw 1 Position (L2) | .41" |
| # of Side Locking Set Screws | 1 |
| Socket Set Screw Size (dia - pitch x length) | 1/4 - 28 x 1/4 |
For More Toolmex CAT40 End Mill Holders Click Here
