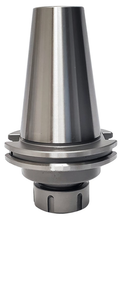

Toolmex CAT50 Collet Holder ER32 Collet x 4" Gage Length L1, 3/32 - 3/4" Clamp Range - 8-100-5075P
Brand: TMX- SKU:
- 8-100-5075P
- ID:
- 679491
| Nut Style | Slotted |
| Nut Thread | M40 x 1.5 |
| Adjusting Screw Size | 7/8-16 x 1/2" |
| Nut OD (D1) | 50mm |
$175.95
Toolmex CAT50 Collet Holder ER32 Collet x 4" Gage Length L1, 3/32 - 3/4" Clamp Range - 8-100-5075P
- Engineered for a wide range of applications
- Vibration reduction for extended spindle and tool life
- Flange Screw Size: M5 x .8 x 5mm
- Certified balanced to 25,000 RPM at G2.5
- Taper ground to AT3 specification for maximum spindle contact
- Maximum 0.0001” T.I.R. at collet face
- Through-spindle coolant delivery (AD)
- Balanced nut for increased holding power
- Pull stud thread is 1"-8
For More Toolmex CAT50 ER Collet Chuck Holders Click Here
