Toolmex CAT50 End Mill Holder 2" ID (D1) x 10" Gage Length (L1) - 8-110-5280P

  • Balanced to 25,000 RPM at G2.5
  • Taper ground to AT3 specification for maximum spindle contact
  • H5 bore tolerance for improved concentricity and tool life
  • Coolant Spindle-thru capability (AD)
  • Balanced collet nut is included
  • Flange Screw Size: M4 x .7 x 4mm
  • Pull stud thread is 5/8"-11

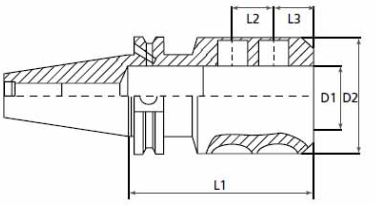

Major Diameter (D2) 3.75"
Locking Screw 1 Position (L2) 1.36"
L3 1.30"
# of Side Locking Set Screws 2
Socket Set Screw Size (dia - pitch x length) 1-14 X 5/16
