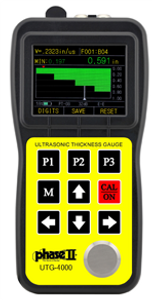

Phase II Ultrasonic Thickness Gauge w/ A&B Scan and Thru Coating Capability - UTG-4000

Brand:   Phase II
SKU:
UTG-4000
ID:
117946
callling
$3,387.20
Current Stock:
Adding to cart… The item has been added

Phase II

Phase II Ultrasonic Thickness Gauge w/ A&B Scan and Thru Coating Capability

Model No. UTG-4000


Utilizing color waveform A-scan and time based B-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity and Thru-Coating Capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary thickness gauges couldn’t do.


The UTG-4000 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.


Specifications:

Operating Principle Ultrasonic pulse/echo method with dual element probe
Display type 2.4” Color Screen
Resolution 0.001”, .01” /0.01mm (selectable)
Measuring Range 0.02-20.0” (10mm-145mm) Dependent upon probe & material
Repeatability +/-.001” (+/-0.05mm)
Sound velocity range 0.0197-0.3937in/us (500-9999m/s)
Measuring Error 0.001”(up to 0.984”)
0.007”(up to 3.03”
0.019”( 4” and above)
Display Modes Digital Thickness Readout
A-scan or Waveform
Min/Max Capture
D-Value / Reduction
V-Path Correction Automatic
Update rate Selectable: 4Hz, 8Hz, 16Hz
Refresh rate 4/second
Alarm Settings Min/Max Alarm
Dynamic waveform color change on alarm
Operating temperature 14-122ºF (-10ºC - +50ºC)
Auto Shut-Off After 5 minutes
Power supply 3v AA alkaline batteries (2pc)
Operating Time Approx. 36 hours
Dimensions 6.02” x 2.99” x 1.45” (153 x 76 x 37mm)
Weight 9.9oz (280g)



UTG-4000 Probe Specifications:

Part No. UTG3000-400 UTG3000-475 UTG3000-404 UTG3000-440 UTG3000-450
Probe Style Standard Small Tube Extreme small tube Rough surface/
Porous metal
Hi-Temp
Frequency 5MHz 7.5 MHz 10 MHz 2 MHz 5 MHz
Contact Dia. 8mm 6mm 4mm 17mm 15mm
Measure range: .031-3.93” .031-1.18” .019-.787” .157-20” .157-3.14”
Temperature 14-158ºF 14-158ºF 14-158ºF 14-158ºF 0-572ºF



Click to Order UTG-4000 Probes
