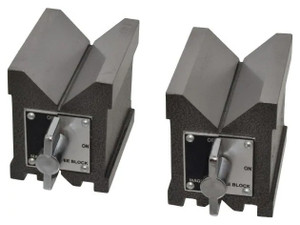

Value Collection Magnetic V-Blocks (Pair), 4" x 3" x 3-3/4" - 52-765-5
Brand: Value Collection- SKU:
- 52-765-5
- ID:
- 316976
| Dimensions (L x W x H) | 4" x 3" x 3-3/4" |
| V-Openings | Top 2-1/8", Bottom 7/8" |
$549.95
Value Collection Magnetic V-Blocks (Pair), 4" x 3" x 3-3/4"
Ideal for holding round or irregular shapes for scribing, grinding, measuring machining and test applications.
Features:
- Can be used either ways, up or standing on end.
- Vee faces can be energized or de-energized simultaneously by turning the rotary action control knob.
- Brass knob ensures no interference with the magnetic field, unlike the conventionally used steel knobs.
- Flatness tolerance of the mounting base: 0.0003"
- Vee grooves are square and parallel with all surfaces within 0.0004".
- Serial numbered in matched pairs, matched overall accuracy: 0.0004".
- Powerful magnetic strength of 180 lbs.
Specifications:
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Width (mm) | 76.20 |
| Overall Width (Inch) | 3 |
| Overall Height (mm) | 95.25 |
| Overall Height (Inch) | 3-3/4 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 4.76 |
| Minimum Capacity of V (Inch) | 3/16 |
| Maximum Capacity of V (mm) | 69.85 |
| Maximum Capacity of V (Inch) | 2-3/4 |
| Material | Steel |
| Magnetic | Yes |
| Includes | Magnetic Chuck |
