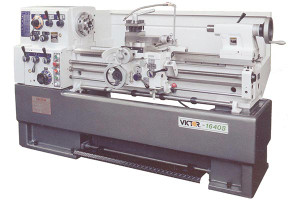

Victor 1640S/1660S Precision Heavy Duty High Speed Lathes
Brand: Victor Machinery Solutions, Inc.- ID:
- 355872
Victor 1640S/1660S Precision Heavy Duty High Speed Lathes
High performance precision heavy-duty lathe with rigid one-piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high quality construction results in stability and consistency.
Features:
- One piece heavy-duty cast iron base with a special exit for chips removal
- Oversized rigid compound rest for heavy cutting
- Hardened and precision ground gears and bedways
- Hardened and ground spindle nose
- Full Meehanite casting bed
- Headstock transmission gears driven by spline shafts
- The spindle is supported at 3 points by precision bearings
- Safety overload device
- Inch/metric threading without changing gears
- 7.5 HP main motor delivers full power at all 12 speeds
Standard Accessories:
- Removable gap
- Tailstock
- Coolant system
- Chuck cover with limit switch
- Full length foot brake
- D.P. / module thread change gears
- Threading dial indicator
- Center sleeve
- Dead center M.T. #4
- Leveling screws and pads
- Manual and parts list
| Item No. | V1640S V1660S |
| Swing over bed | 16" |
| Swing over cross slide | 9.44" |
| Swing over gap | 23-7/16" |
| Bed width | 11-13/16" |
| Distance between centers | V1640S 40" V1660S 60" |
| Spindle bore diameter | 2.03" |
| Spindle bore taper | M.T. #6 |
| Taper of center in sleeve | M.T. #4 |
| Spindle nose | D1-6 |
| Number of spindle speeds | 12 Steps |
| Range of spindle speeds | 30 ~ 2,000 rpm |
| Speed selections | 0, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000 |
| Range of longitudinal feeds | 0.0012" ~ 0.0252"/rev. |
| Range of cross feeds | 0.0006" ~ 0.0126"/rev. |
| Inch threads | 2 ~ 56 TPI x 40 kinds |
| Metric threads | 0.4 ~ 14 mm x 52 kinds |
| Cross slide travel | 9" |
| Compound slide travel | 4-3/4" |
| Tailstock taper center | M.T. #4 |
| Tailstock quill travel | 4-3/4" |
| Main motor | 7.5 HP 3 Phase |
| Coolant pump | 1/8 HP |
| Shipping dimensions (LxWxH) | V1640S 89"x38"x65" V1660S 110"x38"x65" |
| Gross weight | V1640S 4,290 lbs. V1660S 4,950 lbs. |
