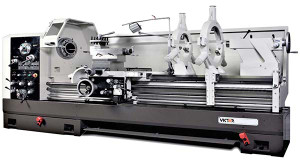

Victor 3600RS Series Precision Heavy Duty Lathes

Victor 3600RS series lathe is designed to provide outstanding performance and structural rigidity with 4-1/8" spindle bore and 20 HP main motor.

Features:

  • 4-1/8" spindle bore with D1-11 camlock spindle nose
  • The precision ground spindle is supported at three points by high precision bearings
  • Heavily ribbed wide bed with induction hardened and precision ground bed ways for rigidity and low vibration
  • Hardened and precision ground alloy steel gears and shafts
  • Universal gearbox for inch, metric, D.P., and module threading without changing gears
  • Automatic and manual dual mode lubrication system for slide ways
  • Adjustable safety overload device
  • Tailstock quill is equipped with 4:1 reduction gearing ratio to provide easy drilling operation
  • Two-way longitudinal power rapid traverse on the model with 120" between centers or longer
  • Automatic stopper for longitudinal feeds

Standard Accessories:

  • Center sleeve
  • Dead center M.T. #5
  • Threading dial indicator
  • Coolant system
  • Leveling screws and pads
  • Tailstock with two-speed quill
  • Removable gap
  • Two-way power rapid traverse on model with 120" between centers or longer
  • Manual and parts list

Machine Includes:

  • Steady rest with rollers
  • 4-way tool post
  • Halogen work light
  • Chuck cover with limit switch

Optional Machine Accessories:

  • Taper turning attachment
  • Quick change tool post
  • 3-jaw scroll chuck
  • 4-jaw independent chuck
  • Follow rest
  • Full length splash guard
  • Digital readout (DRO)
  • Face plate
  • Micro carriage stop
  • Live center
Swing over bed 36"
Swing over cross slide 27.50"
Swing over gap 48"
Bed width 18-1/8"
Spindle bore diameter 4.13" (6.02" Opt.)
Taper of center in sleeve M.T. #5
Spindle nose  D1-11 (Opt. 6.02" bore is A2-11)
Number of spindle speeds 12 Steps
Range of spindle speeds  15 ~ 1,000 rpm
Range of longitudinal feeds  0.0020" ~ 0.0276"/rev.
Range of cross feeds  0.0010" ~ 0.0138"/rev.
Inch threads  2 ~ 28 TPI x 36 kinds
Metric threads  0.8 ~ 14 mm x 38 kinds
Cross slide travel  16-1/2"
Compound slide travel  10"
Tailstock taper center M.T. #5
Tailstock quill travel 9"
Main motor  20 HP 3 Phase
Coolant pump  1/8 HP
