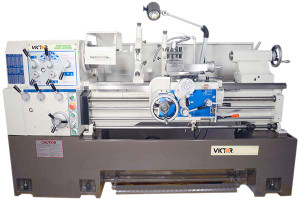

Victor S1760E Precision Heavy Duty High Speed Lathe, 3" Bore - VS1760E
Brand: Victor Machinery Solutions, Inc.- SKU:
- VS1760E
- ID:
- 355882
| Distance Between Centers | 59" |
| Dimensions LxWxH | 110"x38"x64" |
| Weight | 4,850 lbs. |
| Call For Price Enable | yes |
$0.00
Victor S1760E Precision Heavy Duty High Speed Lathe, 3" Bore - VS1760E
Precision built lathe combines accuracy, rigidity and large 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
Features:
- Large 3-1/8" thru spindle hole
- One-piece high rigidity and low vibration base
- Thermal treated Meehanite cast bed
- Hardened and precision ground bedways
- Thermal treated and precision ground alloy gears
- Universal gearbox for both inch and metric threading
- Double reservoir oil bath type cross slide
- Safety overload device
- Wear-resistant phosphor bronze leadscrew nuts
- High capacity coolant tank provides sufficient coolant output
Standard Accessories:
- Removable gap
- Tailstock
- Coolant system
- Chuck cover with limit switch
- Full length foot brake
- Threading dial indicator
- Auto-feed stopper ring
- Center sleeve
- Dead center M.T. #4
- Leveling screws and pads
- Manual and parts list
Machine Includes:
- 10" 3-jaw chuck
- Steady rest with rollers
- Follow rest
- 4-way tool post
- Halogen work light
- Full length splash guard
- Chuck cover w/ limit switch
| Item No. | VS1760E |
| Swing over bed | 17" |
| Swing over cross slide | 9.45" |
| Swing over gap | 25.59" |
| Bed width | 11.81" |
| Spindle bore diameter | 3.13” |
| Spindle bore taper | M.T. #7 |
| Taper of center in sleeve | M.T. #4 |
| Spindle nose | D1-8 |
| Number of spindle speeds | 12 Steps |
| Range of spindle speeds | 40 ~ 2,000 rpm |
| Speed selections | 40, 60, 90, 120, 185, 270, 280, 440, 635, 855, 1350, 2000 |
| Range of longitudinal feeds | 0.002" ~ 0.03"/rev. |
| Range of cross feeds | 0.0008" ~ 0.011"/rev. |
| Inch threads | 4 ~ 56 TPI x 36 kinds |
| Metric threads | 0.5 ~ 7 mm x 17 kinds |
| Cross slide travel | 9.65" |
| Compound slide travel | 4.92" |
| Tailstock taper center | M.T. #4 |
| Tailstock quill travel | 5.91" |
| Main motor | 7.5 HP 3 Phase |
| Coolant pump | 1/8 HP |
