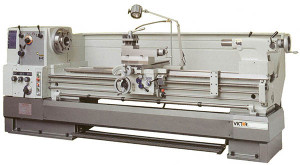

Victor S2260S Precision Heavy Duty Lathe - VS2260S

Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.

Features:

Hardened and precision ground chromium molybdenum steel gears in headstock
Hardened and ground bed ways
Meehanite casting bed
Large 4-1/8" spindle bore with D1-11 spindle nose
The spindle speed ranges from 15 ~ 1,200 rpm
Carriage with mechanical overload device
Turcite B coated slideways between saddle and bed
Cross slide is induction hardened to HRC 52° and precision ground
2-speed tailstock quill speed
Universal inch/metric gearbox
Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
2-way longitudinal (z-axis) power rapid traverse on S22100S and S22120S

Standard Accessories:

Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (20120S and 20160S only)
Leveling screws and pads
Manual and parts list

Machine Includes:

Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover w/ limit switch
Full length splash guard for S2240S, S2260S and S2280S only
On-carriage splash guard for S22100S and S22120S only

Swing over bed	22"
Swing over cross slide	14-1/8"
Swing over gap	29-3/8"
Bed width	15-3/4"
Spindle bore diameter	4.13"
Spindle bore taper	M.T. #8
Taper of center in sleeve	M.T. #5
Spindle nose	D1-11
Number of spindle speeds	12 Steps
Range of spindle speeds	15 ~ 1,200 rpm
Speed selections	15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200
Range of longitudinal feeds	0.0014" ~ 0.0387"/rev.
Range of cross feeds	0.0007" ~ 0.01935"/rev.
Inch threads	2 ~ 112 TPI x 60 kinds
Metric threads	0.2 ~ 14 mm x 60 kinds
Cross slide travel	12-1/2"
Compound slide travel	10"
Tailstock taper center	M.T. #5
Tailstock quill travel	6-5/16"
Main motor	10 HP 3 Phase
Coolant pump	1/8 HP

For More Victor S2200S Series Precision Heavy Duty Lathes Click Here
