Victor Variable Speed Vertical Knee Mills, 10" x 54" Table
Brand: Victor Machinery Solutions, Inc.- ID:
- 356062

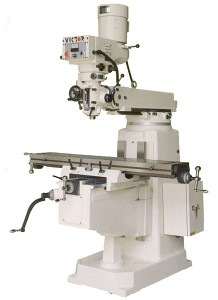

Victor Variable Speed Vertical Knee Mills, 10" x 54" Table
Victor JF-4VS & JF-4EVS variable speed vertical knee mill comes with rigid one-piece bed and box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
Features:
- Meehanite casting
- Hardened and ground table and slideways
- Rigid one-piece bed and box structure column casting
- Turcite-B on X & Y-axis slideways
- Double saddle locks
- Precision hand scraped
- High precision chromed quill
- Built-in one shot lube system
- JF-4EVS 3 HP frequency inverter drive motor
Standard Accessories:
- Draw bar
- Front rubber way cover
- Rear rubber way cover
- One-shot lube system
- Tool box with tools
Optional Machine Accessories:
- Coolant Chip Tray
- Halogen Work Light
- Horizontal Milling Attachment
- Powerfeed on X, Y, Knee Axis
- Milling Vise
- Coolant System
- Riser block
- Rotary Table
- Air Power Drawbar
- Digital Readout
- Clamping Kit
- R8 collet set
| Longitudinal travel (X-axis) | 40" (no powerfeed)/36" (with powerfeed) |
| Cross travel (Y-axis) | 16" |
| Vertical travel of knee | 16" |
| Distance from spindle nose to table | 16.88" |
| Slide ways | Square |
| Spindle motor | 3 HP 3 Phase |
| Spindle taper | R8 |
| Spindle speeds | 60 ~ 4,200 rpm |
| Quill travel | 5" |
| Quill feeds | 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm) |
| Quill diameter | 3-3/8" |
| Swiveling angle of head | 90° |
| Head inward & outward | 45° |
| Overall height | 84" |
| Overall depth | 77.18" |
| Overall width | 105" |
| Packing Dimensions LxWxH | 70" x 62" x 76" |
| Approx. Net weight | 3,450 lb. |
