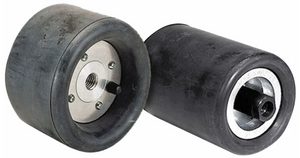

Walter Surface Technologies PNEUMATIC DRUMS
The Pneumatic Drums put a cushion of air between your abrasives to eliminate edge cutting and swirl marks. Increase abrasive life by reducing heat build-up and allowing for more flexibility.
Specifications:
| ITEM | WIDTH | DIAMETER | ABRASIVE ARBOR | MAX RPM | STANDARD PACKED QUANTITY |
|---|---|---|---|---|---|
| 07F037 | 3-1/2" | 5" | 5/8" - 11 | 3,800 | 1 |
| 07F050 | 5-3/8" | 3-1/2" | M14 | 5,000 | 10 |
| 07F051 | 5-3/8" | 3-1/2" | 5/8" - 11 | 3,800 | 1 |
| 07F093 | 3-1/2" | 5" | - | 3,800 | 22 |
| 07F095 | 5-3/8" | 3-1/2" | 5/8" - 11 | 3,800 | 10 |
Application :
These pneumatic drums are designed for use with Line-Mate finishing tools and are ideal for:
- Line finishing: Creating consistent grain patterns on metal surfaces.
- Surface blending: Smoothing welds and transitions.
- Stainless steel work: Especially effective due to reduced heat buildup.
- Edge protection: The air cushion minimizes swirl marks and edge cutting.
- Abrasive longevity: Air cushioning reduces heat, extending abrasive life.
Technical Tips :
- Replace the rubber bladder periodically to extend the drum’s service life.
- Check and replace the valve as needed to maintain consistent air pressure.
- Verify that your tool’s arbor thread matches the drum (M14 or 5/8"-11) to ensure compatibility.
- Always confirm that your tool’s RPM does not exceed the drum’s maximum rated RPM to prevent damage or injury.
