WENmagnetics MLX Permanent Magnet Lifters

For lifting flat or round loads

  • Two-pole design with prismatic contact surfaces and rare earth magnets give great penetration power, even with rough contact surfaces.

  • Lever actuation with safety latch in both positions, magnetized and unmagnetized and designed to be operated with one hand.

  • Safety coefficient 3 - the measured break-away force is 3 times higher than the rated "safe working load" force.

  • Easy to handle thanks to its low weight - breakaway force from 80 to 115 times its own weight.

  • Easily maintained with re-grindable pole contact feet and a maintenance free mechanism.

  • The rare earth Neodymium (NdFeB) magnets incorporated in these lifting magnets guarantee a long magnet life under normal working conditions.


Features:

  • Utilizing the incredible power of rare earth magnets to ensure optimal capacity with small size and weight
  • Standard 3:1 safety rating complete with test certificate
  • Prismatic pole feet allows lifting of both round and flat loads
  • Fully switching On and Off with hand actuation
  • No power required for complete safety and flexibility
  • Durable design can be actuated single-handed


Specifications:

Item No. Rated Capacity Flats Rated Capacity Rounds
MLX-250 550 lbs 220 lbs
MLX-500 1,100 lbs 550 lbs
MLX-1000 2,200 lbs 1,100 lbs
MLX-2000 4,400 lbs 2,200 lbs



Model MLX-250 MLX-500 MLX-1000
Load flat 550 lb. 1100 lb. 2200 lb.
Load round 220 lb. 550 lb. 1100 lb.
Min./Max. Diameter 2.0" / 13.8" 2.5" / 15.7" 3.2" / 15.7"
Detachment force* 1750 lb. 3575 lb. 7825 lb.

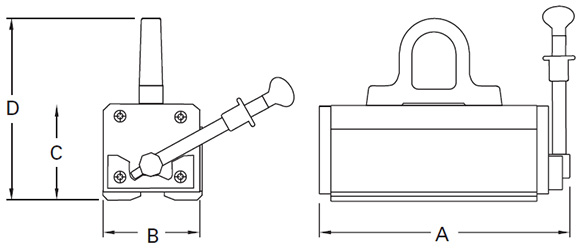

Dimensions:
A 7.40" 10.31" 14.17"
B 3.15" 3.94" 5.51"
C 2.95" 3.74" 5.31"
D 5.98" 7.28" 9.25"
Weight 15 lb. 35 lb. 88 lb.


Click to view the User's Manual
