Williams Industrial Tools 1.5 H.P. 3 Gallon Electric Pump - JHW5E15H3G
Brand: Williams Industrial Tools- SKU:
- JHW5E15H3G
- ID:
- 801765
$15,373.54
Williams Industrial Tools 1.5 H.P. 3 Gallon Electric Pump - JHW5E15H3G
Quiet operation meets OSHA regulations (80dBA)
2 speed operation allows for faster cylinder advance
Full load starting capacities
Internal filter keeps contamination from damaging pump
Rugged durable design meets the demands of industrial applications
Precision components to minimize wear and improve overall dependability
Features & Benefits:
- Quiet operation meets OSHA regulations (80dBA)
- 2 speed operation allows for faster cylinder advance
- Full load starting capacities
- Internal filter keeps contamination from damaging pump
- Rugged durable design meets the demands of industrial applications
- Precision components to minimize wear and improve overall dependability
- Designed to minimize the number of moving parts and maximize overall pump efficiency
- Ideal for on site construction as well as maintenance

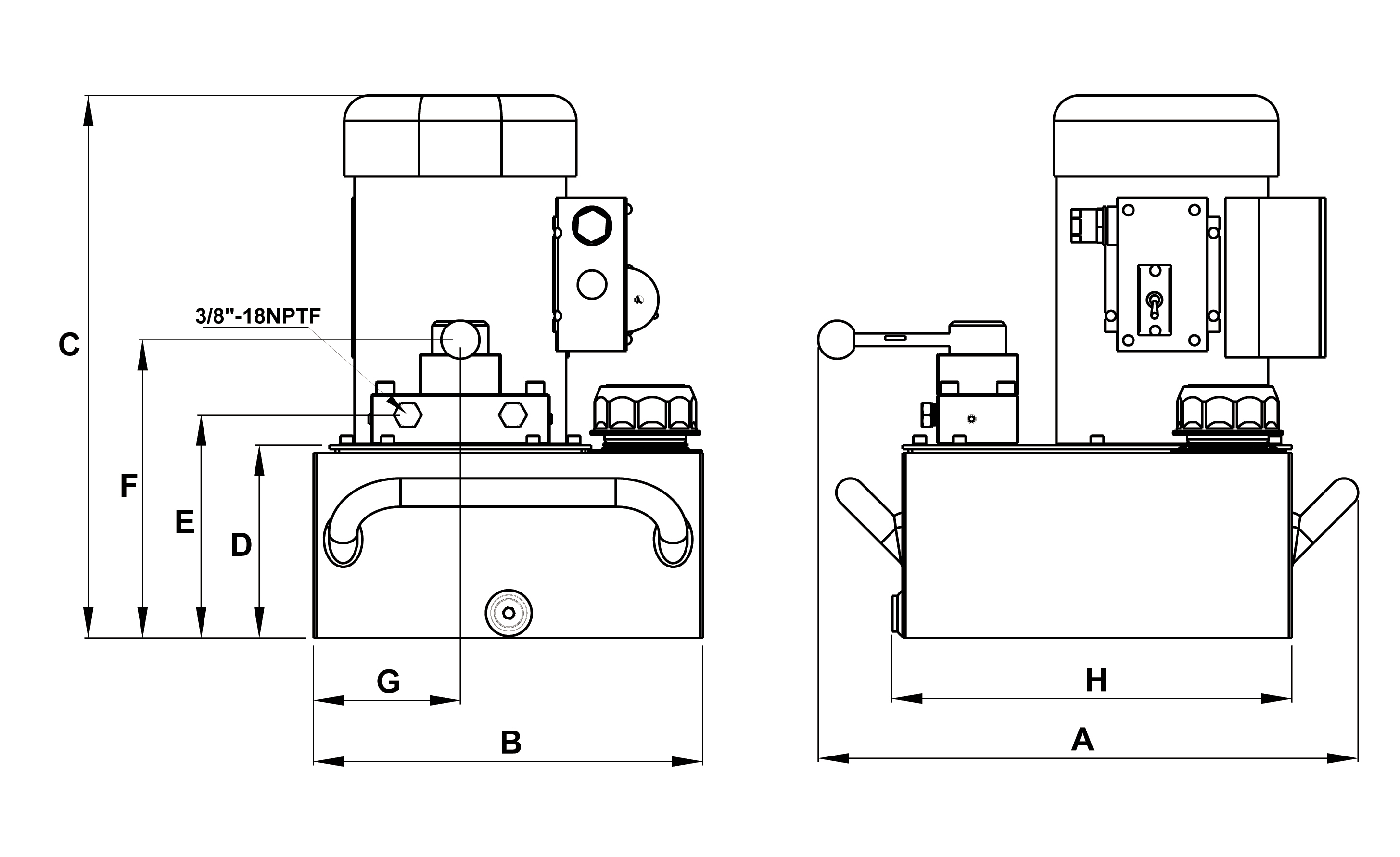

View the Dimensional Drawing
Specifications:
| SKU | JHW5E15H3G |
| Dimensions (in), A | 16.65 |
| Dimensions (in), B | 12.01 |
| Dimensions (in), C | 19.72 |
| Dimensions (in), D | 7.24 |
| Dimensions (in), E | 8.19 |
| Dimensions (in), F | 10.51 |
| Dimensions (in), G | 4.53 |
| Dimensions (in), H | 12.36 |
| Motor Size (hp) | 1.5 |
| Usable Oil Capacity (gal) | 3 |
| Product Code with Remote Control Pendant Switch | 5E15H3GR |
| Max. Output Pressure, (psi) | 10,000 |
| Oil Output Flow Rate, 1st Stage, (in3) | 470 |
| Oil Output Flow Rate, 2nd Stage, (in3) | 61 |
| Valve Type | 4-way, 3-pos. |
| Valve Function | Advance Hold Return |
| Current Draw, (amps) | 17 |
| Motor Voltage, (volts) | 115 |
| Sound Level, (dBA) | 80 |
