Williams Industrial Tools 10,000 Psi Single Acting Air Pump 36.6 Cu - JHW5AS60
Brand: Williams Industrial Tools- SKU:
- JHW5AS60
- ID:
- 801760
$1,660.10
Williams Industrial Tools 10,000 Psi Single Acting Air Pump 36.6 Cu - JHW5AS60
High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
Pressure relief valve for overload protection
Suggested air pressure range: 90-175 psi / 6-12 bar
Designed to be used with single acting cylinders
Dust cover protection for the release control valve
Dual stage release control valve
Features & Benefits:
- High strength reinforced aluminum alloy reservoir is lightweight and corrision-resistant
- Pressure relief valve for overload protection
- Suggested air pressure range: 90-175 psi/6-12 bar
- Designed to be used with single-acting cylinders
- JHW5AS200 offers a turbo funciton that features high flow at high-pressure condition
- JHW5AD150M offers a 4-way control valve for operation of double-acting cylinders
- Maximum workign pressure: 10,000 psi/700 bar

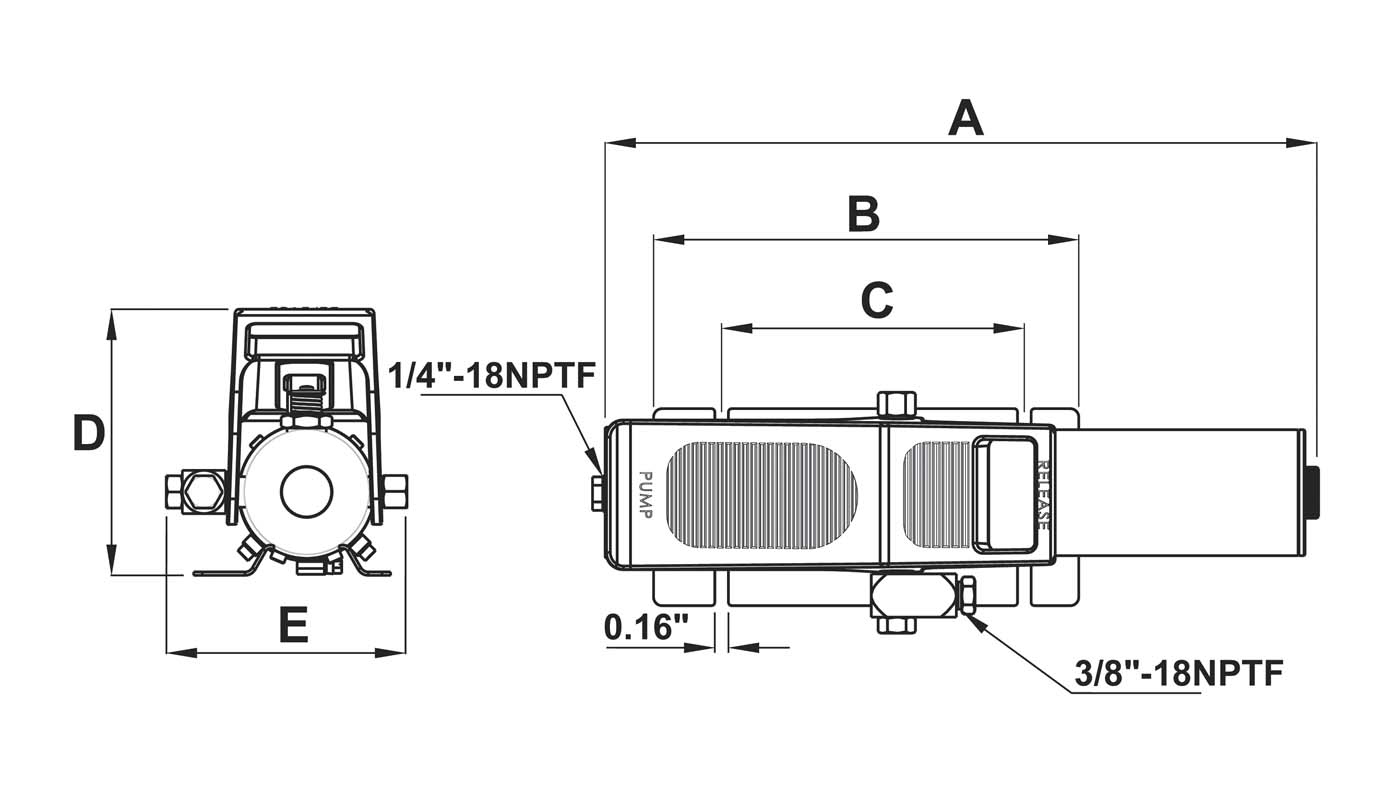

View the Dimensional Drawing
View the User Manual
Specifications:
| SKU | JHW5AS60 |
| Used with Cylinder | Single Acting |
| Usable Oil Capacity, in3 | 36.6 |
| Pressure Rating, psi | 10,000 |
| Oil Output Flow Rate, in3/min, No Load | 61 |
| Oil Output Flow Rate, in3/min, Load | 9 |
| Input Air Pressure Range, psi | 100-200 |
| Dimension A, inches | 16.54 |
| Dimension B, inches | 9.84 |
| Dimension C, inches | 7.01 |
| Dimension D, inches | 6.18 |
| Dimension E, inches | 5.59 |
| Material | Carbon |
| Motor Type | ODP |
| Warranty Information | Limited warranty; free from defects in workmanship and materials |
