Williams Industrial Tools 100 Ton Double-Act Cylinder 18" Stroke - JHW6CD100T18
Rod wiper seals out dirt and contamination
High strength steel construction from gun drilled solid bar
High flow 3/8" NPTF couplers
One piece high grade alloy bearing for side load protection and long life
Ideal for pushing and pulling
Maximum working pressure: 1, psi / 7 bar
Features & Benefits:
- Rod wiper seals out dirt and contamination
- High strength steel construction from gun drilled solid bar
- High flow 3/8" NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar

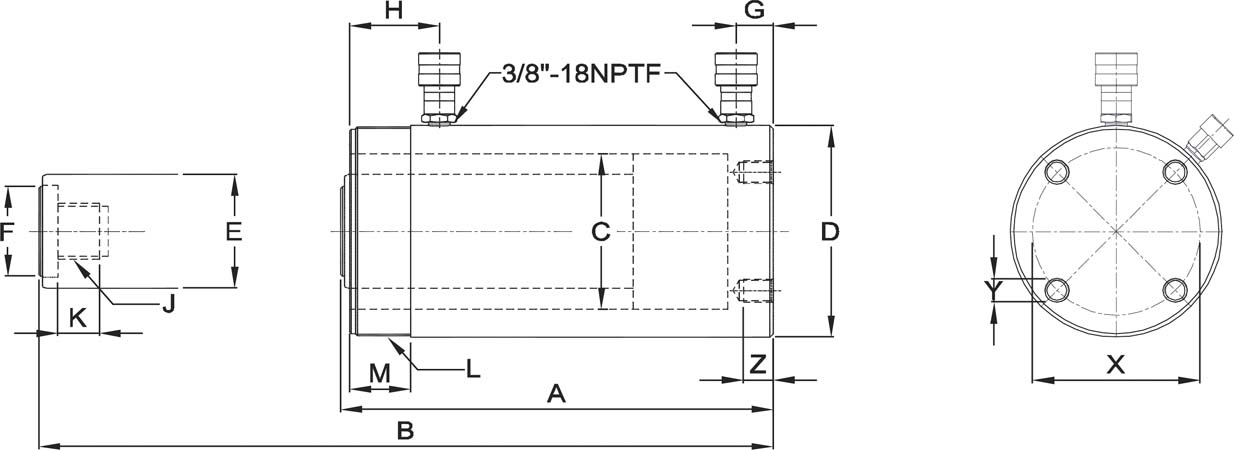

View the Dimensional Drawing
Specifications:
| SKU | JHW6CD100T18 |
| Dimension A, Collapsed Height, inches | 27.05 |
| Dimension B, Extended Height, inches | 45.2 |
| Dimension C, Cylinder Bore Diameter, inches | 5.12 |
| Dimension D, Outside Diameter, inches | 6.97 |
| Dimension E, Plunger Diameter, inches | 3.75 |
| Dimension F, Saddle Diameter, inches | 2.95 |
| Dimension G, Base to Adv. Port, inches | 1.5 |
| Dimension H, Top to Return Port, inches | 2.95 |
| Dimension K, Plunger Thread Length, inches | 1.38 |
| Dimension L, Collar Thread, inches | 6-7/8 - 12 |
| Dimension M, Collar Thread Length, inches | 1.97 |
| Dimension X, Base Mounting Hole, Bolt Circle, inches | 5.47 |
| Dimension Y, Base Mounting Hole, Thread, inches | 3/4 - 10 |
| Dimension Z, Base Mounting Hole, Thread Depth, inches | .98 |
| Cylinder Capacity, tons | 100 |
| Cylinder Effective Area, Pull in2 | 9.58 |
| Cylinder Effective Area, Push in2 | 20.57 |
| Maximum Cylinder Capacity, Pull, ton | 48.6 |
| Maximum Cylinder Capacity, Push, ton | 104.4 |
| Oil Capacity, Pull, inches | 173.86 |
| Oil Capacity, Push in3 | 373.31 |
| Stroke, inches | 18.15 |
| Weight, lbs | 248.3 |
| Actuation | Double Acting |
| Body Material | Steel |
| Warranty Information | Limited warranty; free from defects in workmanship and matrerial |
