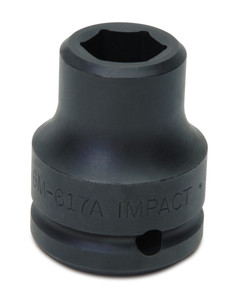

Williams Industrial Tools 3/4" Drive 6-Point Metric 19 mm Shallow Impact Socket - JHW6M-619A
Brand: Williams Industrial Tools- SKU:
- JHW6M-619A
- ID:
- 800995
$30.75
Williams Industrial Tools 3/4" Drive 6-Point Metric 19 mm Shallow Impact Socket - JHW6M-619A
SuperTorque lobular openings for greater turning power without deforming the fastener
Designed for maximum engagement on 6 point fasteners
Suitable for use with pneumatic and electric impact wrenches
Specially heat treated for impact use to provide long life, safety, and durability
Drive end features pin retention hole and groove
Features & Benefits:
- SuperTorque lobular openings for greater turning power without deforming the fastener
- Designed for maximum engagement on 6 point fasteners
- Suitable for use with pneumatic and electric impact wrenches
- Specially heat treated for impact use to provide long life, safety, and durability
- Drive end features pin retention hole and groove
View the Dimensional Drawing
Specifications:
| SKU | JHW6M-619A |
| Size, mm | 19 |
| Dimension A, Overall Length, inches | 2 |
| Dimension B, Drive End Diameter, inches | 1-5/8 |
| Dimension C, Working End Diameter, inches | 1-1/4 |
| Dimension D, Broach Depth, inches | 17/32 |
| Dimension E, Bolt Clearance Depth, inches | 1-1/32 |
| Bolt Clearance Diameter, inches | 11/16 |
| Dimension F, Nose Length, inches | 1 |
| Uses RET RING® Number | 6-1XS |
| Use O-Ring/Pin | 6-1A/6-2B |
| Drive Size, inches | 3/4 |
| Number of points | 6 |
| System of Measurement | Metric |
| Primary Material | Steel |
| Finish | Black Industrial |
| Warranty Information | Limited warranty; free from defects in workmanship and materials |
