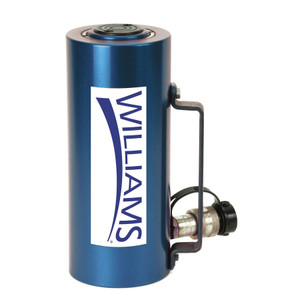

Williams Industrial Tools 30 Ton Aluminum Cylinder 6" Stroke - JHW6CA30T06
Brand: Williams Industrial Tools- SKU:
- JHW6CA30T06
- ID:
- 801831
$3,563.12
Williams Industrial Tools 30 Ton Aluminum Cylinder 6" Stroke - JHW6CA30T06
Lightweight aluminum alloy construction
Up to 60 percent lighter than comparable tonnage steel rams
Convenient carry handle
Hard anodized aluminum piston rod provides extra protection against corrosion and wear
Maximum working pressure: 1, psi / 7 bar
Features & Benefits:
- Lightweight aluminum alloy construction
- Up to 60 percent lighter than comparable tonnage steel rams
- Convenient carry handle
- Hard anodized aluminum piston rod provides extra protection against corrosion and wear
- Maximum working pressure: 10,000 psi / 700 bar

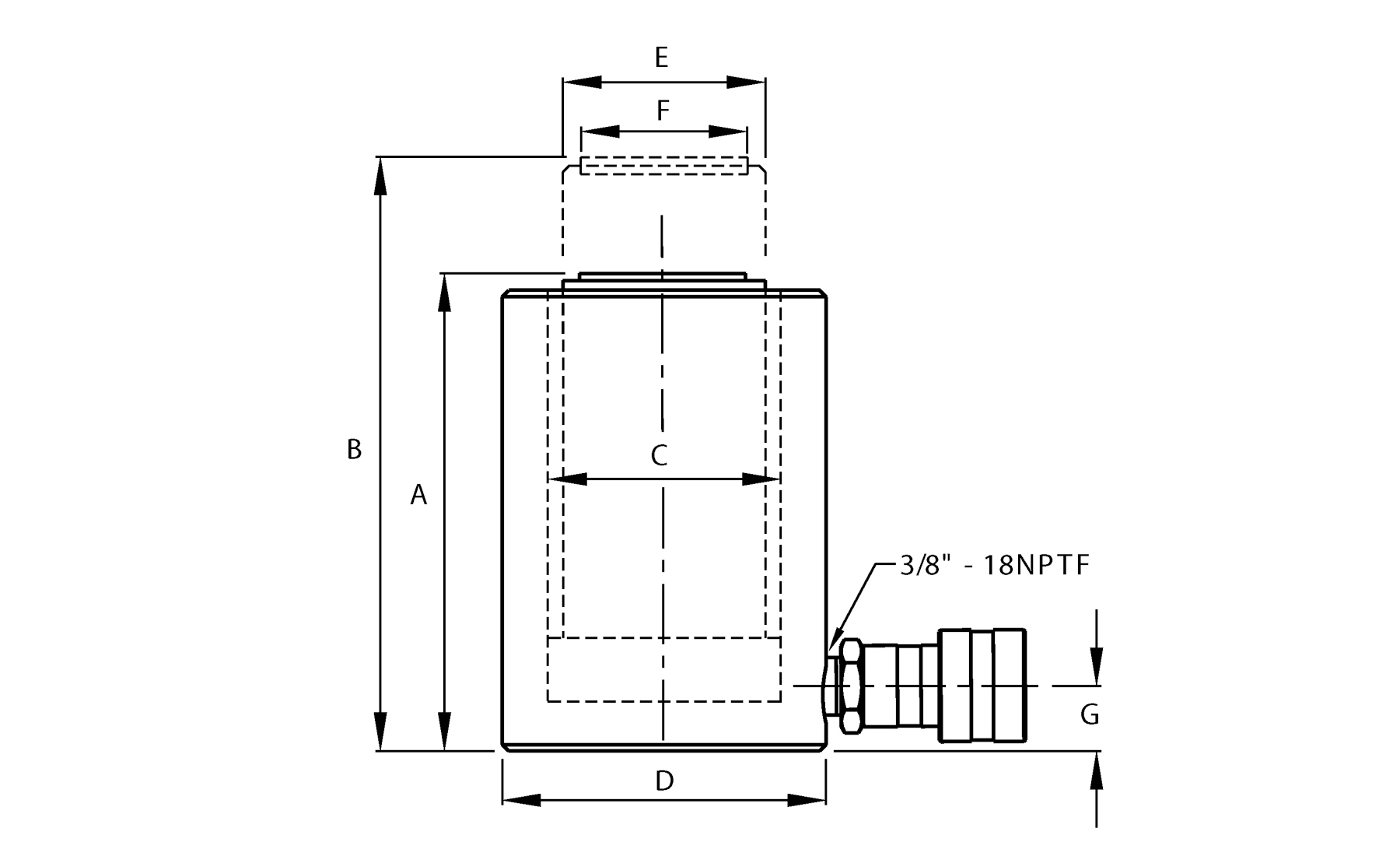

View the Dimensional Drawing
View the User Manual
Specifications:
| SKU | JHW6CA30T06 |
| Dimension A, Collapsed Height, inches | 10.5 |
| Dimension B, Extended Height, inches | 16.5 |
| Dimension C, Cylinder Bore Diameter, inches | 2.9 |
| Dimension D, Outside Diameter, inches | 4.5 |
| Dimension E, Plunger Diameter, inches | 2.5 |
| Dimension F, Saddle Diameter, inches | 2 |
| Dimension G, Base to Inlet Port, inches | 1.5 |
| Cylinder Capacity, tons | 30 |
| Cylinder Effective Area, in2 | 6.5 |
| Internal Pressure at Capacity, psi | 9,231 |
| Oil Capacity, in3 | 39 |
| Stroke, inches | 6 |
| Weight, lbs | 17 |
| Actuation | Single Acting |
| Body Material | Aluminum |
| Warranty Information | Limited warranty; free from defects in workmanship and matrerial |
