Williams Industrial Tools 5 Ton Pull Cylinder - JHW6CP05T05
Brand: Williams Industrial Tools- SKU:
- JHW6CP05T05
- ID:
- 801877
$2,014.50
Williams Industrial Tools 5 Ton Pull Cylinder - JHW6CP05T05
High strength steel construction
One piece high grade alloy bearing for side load protection and longer life
Polyurethane cup seal helps provide optimum performance
External plunger threads
Internal base threads
Used for pulling and tensioning
5AS2 offers a turbo function that features high flow at high pressure condition
5AD15M offers a 4-way control valve for operation of double acting cylinders
Maximum working pressure: 1, psi / 7 bar
Features & Benefits:
- High strength steel construction
- One piece high grade alloy bearing for side load protection and longer life
- Polyurethane cup seal helps provide optimum performance
- External plunger threads
- Internal base threads
- Used for pulling and tensioning
- Maximum working pressure: 10,000 psi / 700 bar

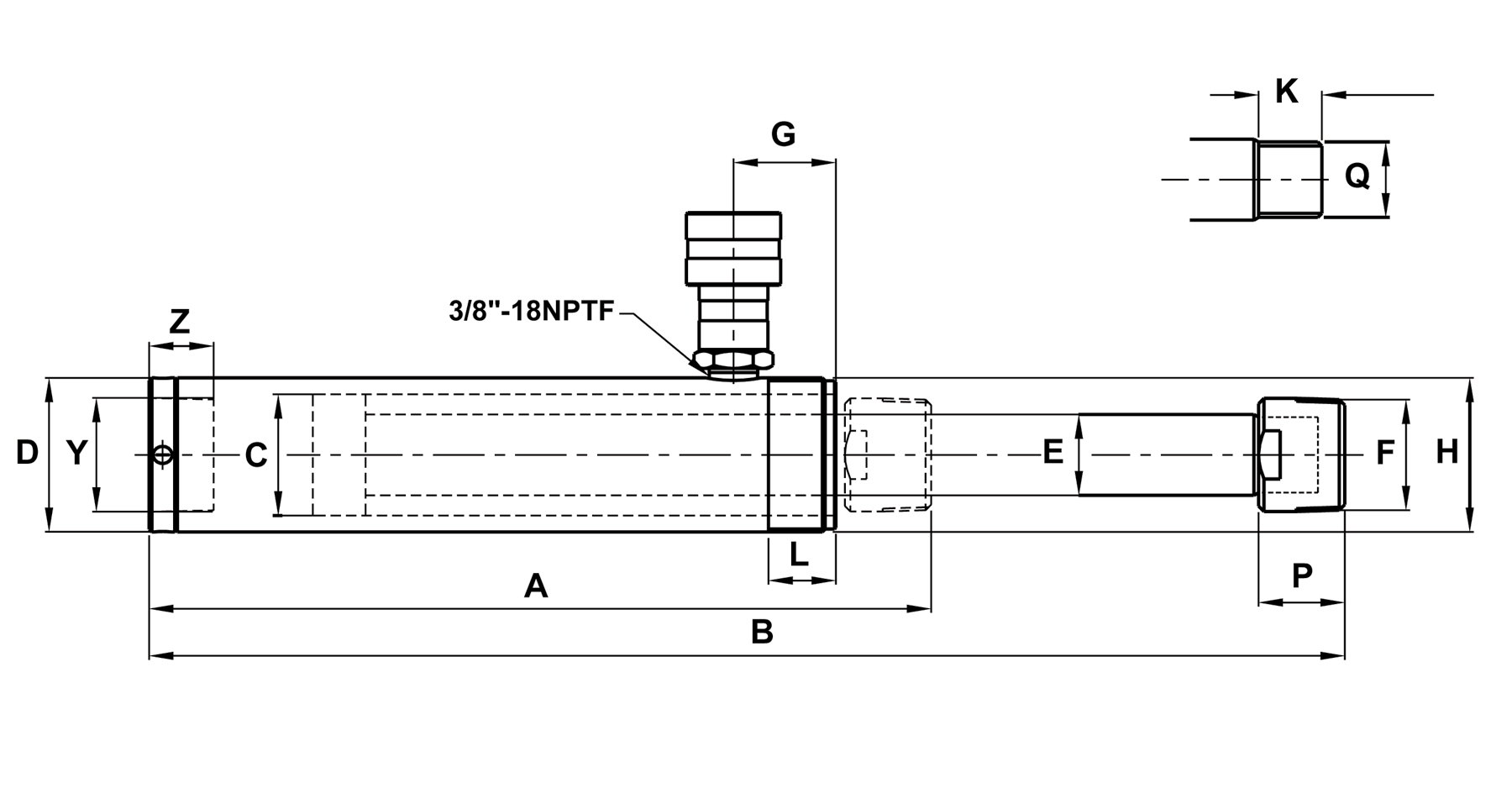

View the Dimensional Drawing
Specifications:
| SKU | JHW6CP05T05 |
| Dimension A, Collapsed Height, inches | 11.85 |
| Dimension B, Extended Height, inches | 17.35 |
| Dimension C, Cylinder Bore Diameter, inches | 1.69 |
| Dimension D, Outside Diameter, inches | 2.25 |
| Dimension E, Plunger, inches | 1.18 |
| Dimension F, Adaptor Thread, inches | 1-1/4"-11.5NPTF |
| Dimension G, Top to Inlet Port, inches | 1.5 |
| Dimension H, Base Mounting Hole, Thread, inches | 1-1/4"-11.5NPTF |
| Dimension H, Collar Thread, inches | 2-1/4"-14 |
| Dimension K, Plunger Thread Length, inches | .93 |
| Dimension L, Collar Thread Length, inches | 1 |
| Dimension P, Adaptor Length, inches | 1.25 |
| Dimension Z, Base Mounting Hole, Depth, inches | .95 |
| Cylinder Capacity, tons | 5 |
| Cylinder Effective Area, in2 | 1.14 |
| Oil Capacity, in3 | 6.34 |
| Pressure at Capacity, psi | 8,770 |
| Stroke, inches | 5.55 |
| Actuation | Single Acting |
| Body Material | Steel |
| Warranty Information | Limited warranty; free from defects in workmanship and matrerial |
