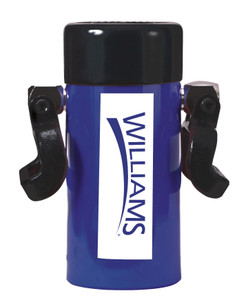

Williams Industrial Tools 55 Ton Single Acting Cylinders 13'' Stroke - JHW6C55T13
Brand: Williams Industrial Tools- SKU:
- JHW6C55T13
- ID:
- 801822
$7,536.68
Williams Industrial Tools 55 Ton Single Acting Cylinders 13'' Stroke - JHW6C55T13
39 models
Internal plunger threads
Snap in grooved saddles
Rod wiper seals out dirt and contamination
Collar fixture threads
Two base mounting holes on most models
Our most rugged, high torque capacity ratchet
Features & Benefits:
- Rod wiper seals out dirt and contamination, collar fixture threads, two base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High flow 3/8" NPTF couplers, collar thread protector
- One piece high grade alloy bearing for side load protection and long life
- Polyurethane cup seal provides optimum performance
- Industrial hard chrome plated ram helps prevent rust and corrosion
- Solid steel cylinder body and heavy-duty return spring provides quicker retraction
- Ideal for lifting and pressing
- Maximum working pressure: 10,000 psi / 700 bar
View the Dimensional Drawing
Specifications:
| SKU | JHW6C55T13 |
| Dimension A, Collapsed Height, inches | 18.15 |
| Dimension B, Extended Height, inches | 31.42 |
| Dimension C, Cylinder Bore Diameter, inches | 3.74 |
| Dimension D, Outside Diameter, inches | 5 |
| Dimension E, Plunger Diameter, inches | 3.15 |
| Dimension F, Saddle Diameter, inches | 2.76 |
| Dimension G, Base to Inlet Port, inches | 1.22 |
| Dimension H, Collar Thread, inches | 5 - 12 |
| Dimension L, Collar Thread Length, inches | 2.17 |
| Dimension Y, Base Mounting Hole, Thread, inches | 1/2"-13UNC |
| Dimension Z, Base Mounting Hole, Thread Depth, inches | .75 |
| Cylinder Capacity, tons | 55 |
| Cylinder Effective Area, in2 | 10.99 |
| Oil Capacity, in3 | 145.84 |
| Pressure at Capacity, psi | 10,000 |
| Stroke, inches | 13.27 |
| Actuation | Single Acting |
| Body Material | Steel |
| Warranty Information | Limited warranty; free from defects in workmanship and matrerial |
