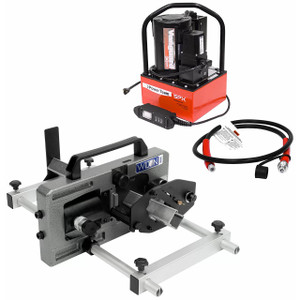

Wilton SHR™ Starter Kit including Power Pack - WL9-28920

Wilton SHR™ Starter Kit including Power Pack - WL9-28920

Experience the shear difference. The WILTON SHR™ is engineered to quickly cut strut, back-to-back strut, and threaded rod without the need for deburring or secondary operations. No mess and no spark mean increased safety and maximum productivity. The precision machined ductile iron frame and powerful 30-ton hydraulic cylinder deliver the industrial toughness and strength needed for any job.

The Power Kit features a dependable SPX 10,000 psi power unit and 6’ hose with quick couplings to power the Wilton SHR™. The hydraulic power unit has a 1 hp, single phase, permanent magnet motor to power a single acting cylinder. The powerful 30 Ton hydraulic cylinder pushes through tough materials with ease. The unit is portable to move with you to wherever the work needs done and is equipped with a roll cage to protect the unit as well as a rocker-switch cabled remote for easy operation. No mess and no spark means increased safety and maximum productivity.

• Blade sets available for shearing Back-to-Back, Deep Only and Cooper B-Line® 4D21 & 4D22 strut
• Fast 3 second cut with no need for deburring or other secondary operations
• Includes two support rods with 17" measurement scale from backstop to cut
• Measuring system to easily monitor cut lengths
• Precision machined ductile iron frame built to withstand rugged use
• Produces clean straight cuts every time
• Quick blade set change requires no extra tools
• Single blade set available for shearing 1/4", 3/8", 1/2" and 5/8" threaded rod
• Standard blade set shears 1-5/8" and 7/8" strut
• Support rods can be replaced with standard 1" O.D. pipe for longer shearing applications

Specifications:
