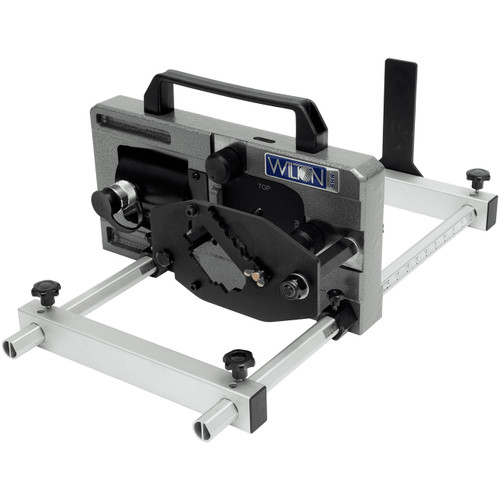

Wilton SHR™ Strut & Threaded Rod Shear WACF-3017 - WL9-28910
Brand: Wilton- SKU:
- WL9-28910
- ID:
- 433557
$3,165.95
Wilton SHR™ Strut & Threaded Rod Shear WACF-3017 - WL9-28910
Experience the shear difference. The WILTON SHR™ is engineered to quickly cut strut, back-to-back strut, and threaded rod without the need for deburring or secondary operations. No mess and no spark mean increased safety and maximum productivity. The precision machined ductile iron frame and powerful 30-ton hydraulic cylinder deliver the industrial toughness and strength needed for any job.
- Blade sets available for shearing Back-to-Back, Deep Only and Cooper B-Line® 4D21 & 4D22 strut.
- Fast 3 second cut with no need for deburring or other secondary operations.
- Includes two support rods with 17" measurement scale from backstop to cut.
- Measuring system to easily monitor cut lengths.
- Portable to move with you to wherever the work needs done.
- Produces clean straight cuts every time.
- Quick coupler connects to any 10,000 psi power supply.
- Single blade set available for shearing 1/4", 3/8", 1/2" and 5/8" threaded rod.
- Standard blade set shears 1-5/8" and 7/8" strut.
- Support rods can be replaced with standard 1" O.D. pipe for longer shearing applications
- Deep Strut: 1-5/8” x 1-5/8"
- Shallow Strut: 1-5/8” x 13/16"
- Width: 7-1/32
- Maximum Capacity: 12 Gauge Mild Steel
- Cylinder (Tons): 30
- Stroke: 1"
Specifications:
| Stock Number | WL9-28910 |
| Cylinder (Tons) | 30 |
| Deep Strut (In.) | 1-5/8" x 1-5/8" |
| Maximum Capacity | 12 Gauge Mild Steel |
| Model Number | WACF-3017 |
| Prop 65 | Cancer and Reproductive Harm |
| Shallow Strut (In.) | 1-5/8" x 13/16" |
| Stroke (In.) | 1 |
| Warranty | 1 Year |
| Width (In.) | 17-1/32 |
| Gross Weight | 76.0 |
| Net weight | 71.5 |
