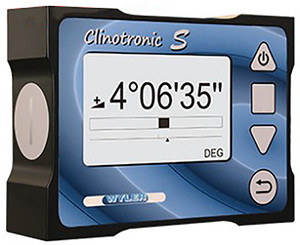

Wyler Clinotronic S - WY-S-XG45

Wyler Clinotronic S - WY-S-XG45

The Clinotronic S is next generation of the successful Clinotronic PLUS. It keeps the key features of its predecessor and adds the latest technology.
Wireless functionality Clinotronic S can be connected to an AndroidTM or iOSTM de- vice, which can then be used as remote displays. This new feature makes the instrument much more versatile and opens up new applications.

The completely redesigned Man-Machine-Interface allows a very intuitive handling.
The large color display it backlit and has a high contrast. It therefore provides excellent readability even under adverse conditions like a workshop or under a machine.

• User friendly
• Excellent display
• Wireless functionality
• Adjusted to local gravity
• Measuring range: ±45°
• Resolution: 5 arcsec
• Limit of errors MW = Measured value: 10 arcsec + 0.03% MW MW = Measured value
• Power / Battery: rechargeable External Power supply: 5V via USB-C
• Dimensions L x W x H: 100 x 75 x 30mm
• Weight: ca. 400g (depending on inserts)

Machine Industry

Adjustment of parts of a machine; e.g. the angle of a grinding head. The remote display facilitates the adjustment.

Automotive Industry

Correct and precise adjustment of the wheel camber of a car is not only a question of safety, but is very crucial for racecars to win. The remote display facilitates the measurement of the values while adjusting the suspension
Correct adjustment of front lights of a car during certification tests. The accuracy of the Clinotronic S makes the testing very effcient.

Communication Industry

A good internet and phone network requires a reliable network of antennas Clinotronic S makes adjusting antennas very easy. The remote display supports the measurement.

Civil Engineering

Correct adjustment of the camber of highways is crucial to ensure that heavy rainwater is draining o fast which again is crucial for traffic safety. Clinotronic S is perfectly suited for this application. The backlit display together with the remote display ensure an effcient work process even at dawn.

Aerospace Industry

Clinotronic S is used worldwide to check and adjust flaps and other control elements on airplanes.

Medical Industry

Clinotronic S is used in hospitals and radiology clinics to ensure correct adjustment of the patients table to the axis of the radiation head.

Solar Energy

Optimal adjustment of solar panels. Clinotronic S is used to adjust and check solar panels in solar power stations to ensure best possible efficiency of the power station.
