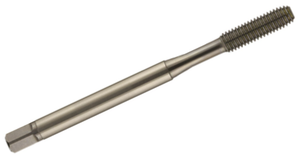

YMW Bottoming Thread Forming Roll Tap, #2-56 Thread Size, H2 Thread Limit
Brand: YMW Taps- ID:
- 358949
| Thread Length | 0.354" |
$35.95
YMW Bottoming Thread Forming Roll Tap, #2-56 Thread Size, H2 Thread Limit
- Vanadium H.S.S. - High Speed Steel
- Finish Coating: Black Oxide
- Improved performance, new tap design.
- Series: N-RS ROLL TAP
- Flute Shape: Fluteless
- Taps have a nitride surface toughening treatment.
- Pitch Form & Profile: 60°
- Pitch Tolerance: +.00025"/-.00000"
- Tolerance_Cutter Diameter: ±.31"
- Tolerance_Cutting Diameter: ±.31"
- Tolerance_Overall Length: ±.31"
- Tolerance_Shank: -.0015"
- Tolerance_Shank Square: -.004"
- Workpiece Material Range: Steel, Non-Ferrous, Cast Iron, Plastics
| Shank Diameter | Drill Size & Percentage Of Thread |
| 0.141" | 1.95mm (75%), 5/64" (65%), #47 (60%) |
For More YMW Bottoming Thread Forming Roll Taps Click Here
