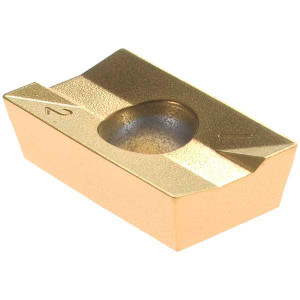

Everede Tool APLT PVD TIN INSERT Carbide Milling Insert TiN Finish, 3/16" Thick x 3/8" Wide 04001 - 00053173
Brand: Everede Tool- SKU:
- 00053173
- ID:
- 659879
$24.06
Everede Tool APLT PVD TIN INSERT Carbide Milling Insert TiN Finish, 3/16" Thick x 3/8" Wide
Manufacturer Part #: 04001
S/N: 00053173
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | APKT |
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | CVM2 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiN |
| Relief Angle | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5760 |
| Insert Size Code | 160404 |
| Material Grade | C2, C3 |
| Width (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | APLT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3750 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | APLT347 |
| Iso Code | APKT 160404 |
| Standards | ANSI |
| Cutting Edge Style | Single Sided |
| Manufacturers Catalog Number | APLT347 |
| Cutter Series Compatibility | CHM |
| Chip Breaker | Common |
| Material Application | Stainless Steel |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5910 |
