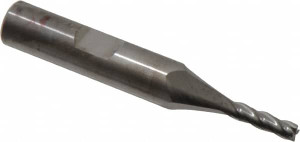

RobbJack 9/64", 1/2" LOC, 3/8" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series T12-405 T12-405-04.5 - 00684696
Brand: RobbJack Corporation- SKU:
- 00684696
- ID:
- 635981
$117.39
RobbJack 9/64", 1/2" LOC, 3/8" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series T12-405
Manufacturer Part #: T12-405-04.5
S/N: 00684696
UNSPSC: 27112803
UPC: 662966237472
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.1406 |
| Mill Diameter (Inch) | 9/64 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Grade | Tuffy |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.001/-0.000 in |
| Shank Diameter Tolerance | -0.0001/-0.0002 in |
| Overall Length Tolerance | +0.060/-0.060 in |
| Series | T12-405 |
