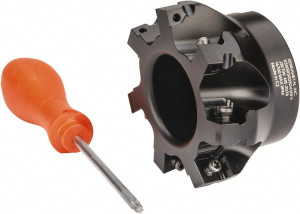

Kennametal 3" Cut Diam, 1" Arbor Hole Diam, 0.361" Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 1-3/4" High, SD.T 43 Insert Style, Series KSSM 1024932 - 01038363
Brand: Kennametal- SKU:
- 01038363
- ID:
- 680777
$1,207.61
Kennametal 3" Cut Diam, 1" Arbor Hole Diam, 0.361" Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 1-3/4" High, SD.T 43 Insert Style, Series KSSM
Manufacturer Part #: 1024932
S/N: 01038363
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SD.T 43.. |
| Cutter Style | KSSISR |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | KSSM |
| Maximum Body Diameter (Decimal Inch) | 2.9380 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3900 |
| Hub Diameter (Decimal Inch) | 2.0650 |
| Pitch Type | Fine |
| Complete Insert Compatibility | SDCW 433PDSR8GN, SDCW 43PDSR8GN, SDPT 43PDER8GB2, SDPT 43PDSR8GB2 |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
