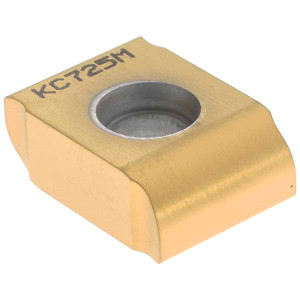

Kennametal LNEU1245R32 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 1/2" Long x 0.1772" Thick x 0.378" Wide 1184090 - 01047091
Brand: Kennametal- SKU:
- 01047091
- ID:
- 660840
$52.67
Kennametal LNEU1245R32 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 1/2" Long x 0.1772" Thick x 0.378" Wide
Manufacturer Part #: 1184090
S/N: 01047091
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | LNEU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 1245 |
| Material Grade | C5, C6, C7 |
| Width (Inch) | 3/8 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | LNEU |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | LNEU1245R32 |
| Iso Code | LNEU1245R32 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNEU1245R32 |
| Cutter Series Compatibility | LN |
| Chip Breaker | Common |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
