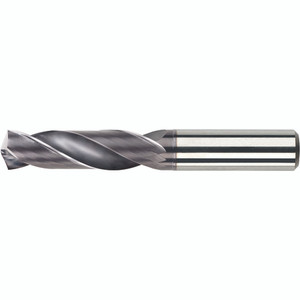

Morse Cutting Tools 9593702 Solid Carbide Drill, 1/4" Dia. x 1/4" Shank Dia. x 3-3/16" OAL x 1-5/8" LCF, 140 Degrees, 3xD, Helical Flute, TiAlCN, Series 5604 - 0115846
Brand: Morse Cutting Tools- SKU:
- 0115846
- ID:
- 858213
| Cutting Diameter | 1/4" |
| Coating | TiAlCN |
| Coolant Supply Property | External |
| Point Angle | 140 Degrees |
| Flute Length | 1-5/8" |
| Overall Length | 3-3/16" |
| Flute Count | 2 |
| Flute Helix Angle | 30 Degrees |
| Shank Type | Round |
| Cutting Edge Material | Carbide |
| Flute Type | Helical |
$57.41
Morse Cutting Tools Solid Carbide Drill, 1/4" Dia. x 1/4" Shank Dia. x 3-3/16" OAL x 1-5/8" LCF, 140 Degrees, 3xD, Helical Flute, TiAlCN, Series 5604 - 0115846
5604 1/4" 3XD SC DRILL
Manufacturer Part Number: 9593702
Trade Name: SHEARDRILL
Country of Manufacture: USA
Specifications:
| SKU | 115846 |
| Manufacturer Part Number | 9593702 |
| Legacy Product Number | MU110115846 |
| HQ Product Code | MRT0115846 |
| Series/List # | 5604 |
| Drill Bit Size / Cutting Diameter | 1/4" |
| Decimal Equivalent | 0.25" |
| Length Group | 3xD |
| Coating | TiAlCN |
| Applicable Material | Steel, Cast Iron |
| Connection Diameter Machine Side | 1/4" |
| Coolant Supply Property | External |
| Point Angle | 140 Degrees |
| Functional Length | 34 mm |
| Tool Type | High Performance Carbide Drill |
| Usable Length | 1-5/8" |
| Length Chip Flute | 1-5/8" |
| Overall Length | 3-3/16" |
| Flute Count | 2 |
| Cutting Direction | Right Hand |
| Dimension Units | Inch |
| Drill Bit Size / Cutting Diameter - Inch | 1/4" |
| Flute Helix Angle | 30 Degrees |
| Shank Type | Round |
| Shank Standard | h6 |
| Cutting Edge Material | Carbide |
| Flute Type | Helical |
| Point Shape | |
| Measurement Type | Inch |
| Feature | Single Margin Drill |
| Body Material | Carbide |
