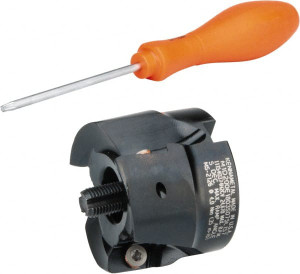

Kennametal 2" Cut Diam, 3/4" Arbor Hole Diam, 18.03mm Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0/90° Lead Angle, 40.01mm High, EC18, EP18 Insert Style, Through Coolant, Series Mill 1-18 2267542 - 01230671
Brand: Kennametal- SKU:
- 01230671
- ID:
- 680736
$807.79
Kennametal 2" Cut Diam, 3/4" Arbor Hole Diam, 18.03mm Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0/90° Lead Angle, 40.01mm High, EC18, EP18 Insert Style, Through Coolant, Series Mill 1-18
Manufacturer Part #: 2267542
S/N: 01230671
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | EC18.., EP18.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | Mill 1-18 |
| Maximum Body Diameter (Decimal Inch) | 1.9340 |
| Overall Height (Mm - 5 Decimals) | 40.01 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.41 |
| Keyway Width (Decimal Inch) | 0.3311 |
| Hub Diameter (mm) | 42.88 |
| Hub Diameter (Decimal Inch) | 1.6882 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
