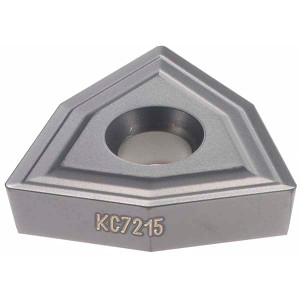

Kennametal DFT110506HD KC7215 Carbide Indexable Drill Insert TiAlN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon 1925976 - 01281179

Kennametal DFT110506HD KC7215 Carbide Indexable Drill Insert TiAlN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon 1925976 - 01281179

Brand:   Kennametal
SKU:
01281179
ID:
655798
callling
$56.78
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal DFT110506HD KC7215 Carbide Indexable Drill Insert TiAlN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon

Manufacturer Part #: 1925976

S/N: 01281179

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleDFT
Insert MaterialCarbide
Manufacturer GradeKC7215
Inscribed Circle (Decimal Inch)0.6929
Inscribed Circle (mm)17.60
Corner Radius (Decimal Inch)0.0236
Corner Radius (mm)0.6
ChipbreakerHD
Material GradeC3, C4, C7
Coating ProcessPVD
ShapeTrigon
Hole Diameter (Mm) ( - 0 Decimals)5.85
Relief Angle8
Insert Size110506
Length (Mm)11.63
Length (Decimal Inch - 4 Decimals)0.4579
Included Angle Degree84
Thickness (Decimal Inch - 4 Decimals)0.1941
Coating/FinishTiAlN
UNSPSC Code23242105
