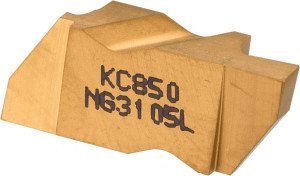

Kennametal NG3105L KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, LH, 2.67mm Cutting Width, 3.81mm Max Depth, Series Top Notch 1113889 - 01339944
Brand: Kennametal- SKU:
- 01339944
- ID:
- 649574
$48.59
Kennametal NG3105L KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, LH, 2.67mm Cutting Width, 3.81mm Max Depth, Series Top Notch
Manufacturer Part #: 1113889
S/N: 01339944
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.1051 |
| Cutting Width (mm) | 2.67 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.81 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KC850 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Neutral |
| Insert Size | 3105 |
| Material Grade | C5, C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | CVD |
| Insert Seat Size | 3 |
| Included Angle Degree | 55 |
| Coating/Finish | TiC/TiCN/TiN |
| Single Or Double End | Double |
