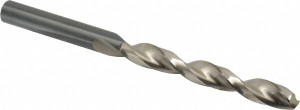

Walter Titex 23/64" 130° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-29/32" OAL, Split Point 5060563 - 01496231
Brand: Walter Titex- SKU:
- 01496231
- ID:
- 729762
$61.52
Walter Titex 23/64" 130° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-29/32" OAL, Split Point
Manufacturer Part #: 5060563
S/N: 01496231
UNSPSC: 23241634
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 3-3/16 |
| Primary Workpiece Material Code | K, M, N, P, S |
| Overall Length (Inch) | 4-29/32 |
| Series | A1247 |
| Tool Application | Blind Hole, Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 23/64 |
| Maximum Drilling Depth (Decimal Inch) | 2.5980 |
| Maximum Drilling Depth (mm) | 66.00 |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7320 |
| Drill Point Length (mm) | 2.13 |
| Drill Point Length (Decimal Inch) | 0.0838 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ANSI, ISO |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Specification Designation | BS, DIN |
| UNSPSC Code | 23241634 |
