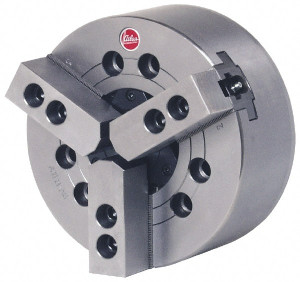

Atlas Workholding 3 Jaws, 8" Chuck Diam, A2-5 Mount, 2.047" Through Hole, Drawbar, Hydraulic Power Lathe Chuck 18,920 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 0.512" to 8.27" Jaw Capacity, 5,000 RPM ATL8-A5 - 01562313
Brand: Atlas Workholding- SKU:
- 01562313
- ID:
- 451103
$2,570.42
Atlas Workholding 3 Jaws, 8" Chuck Diam, A2-5 Mount, 2.047" Through Hole, Drawbar, Hydraulic Power Lathe Chuck 18,920 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 0.512" to 8.27" Jaw Capacity, 5,000 RPM
Manufacturer Part #: ATL8-A5
S/N: 01562313
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Diameter (Inch) | 8 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Mount Type | A2-5 |
| Through-Hole Diameter (Decimal Inch) | 2.0470 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.5120 |
| Maximum Jaw Capacity (Decimal Inch) | 8.2700 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2910 |
| Piston Stroke Length (Decimal Inch) | 0.6300 |
| Maximum Drawbar Pulling Force (lbf) | 7824.00 |
| Maximum Static Gripping Force (lbf) | 19332.00 |
| Maximum RPM | 5000 |
| Force Per Jaw (Lb.) | 18920 |
| Number Of Jaws | 3 |
