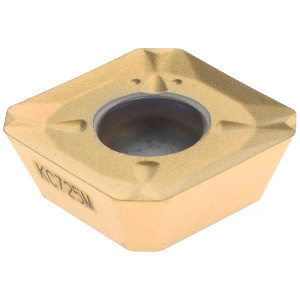

Kennametal SECT443AEEN7LD2 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.1874" Thick 2390256 - 01654805
Brand: Kennametal- SKU:
- 01654805
- ID:
- 660902
$39.28
Kennametal SECT443AEEN7LD2 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.1874" Thick
Manufacturer Part #: 2390256
S/N: 01654805
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SECT |
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | TiAlN |
| Relief Angle | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Insert Size Code | 443 |
| Material Grade | C5, C6, C7 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Inscribed Circle (mm) | 14.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SECT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | SECT443AEEN7LD2 |
| Iso Code | SECT1404AEENLD2 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SECT1404AEENLD2 |
| Cutter Series Compatibility | KSSM |
| Chip Breaker | LD2 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5510 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5510 |
