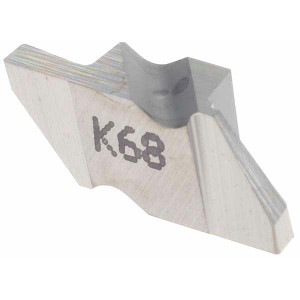

Kennametal NG2062R K68 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch 1113566 - 01869411

Kennametal NG2062R K68 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch 1113566 - 01869411

Brand:   Kennametal
SKU:
01869411
ID:
649639
callling
$37.80
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG2062R K68 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch

Manufacturer Part #: 1113566

S/N: 01869411

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0622
Cutting Width (mm)1.58
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.1098
Maximum Depth of Cut (mm)2.79
Insert MaterialCarbide
Manufacturer GradeK68
Full RadiusNo
Corner Radius (Decimal Inch)0.0075
Corner Radius (mm)0.19
RakeNeutral
Insert Size2062
Material GradeC3
Maximum Depth Of Cut Range (Decimal Inch)0.1000 to 0.1500
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
UNSPSC Code23242105
MSC/Manufacturer NumberNG2062R/L
Insert Height (Decimal Inch)0.2190
Included Angle Degree55
Coating/FinishBright/Uncoated
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
