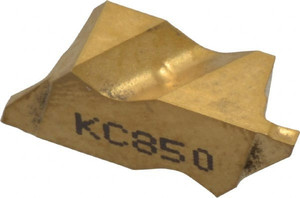

Kennametal NG2031LK KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, LH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1114886 - 01981372
Brand: Kennametal- SKU:
- 01981372
- ID:
- 649697
$48.38
Kennametal NG2031LK KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, LH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch
Manufacturer Part #: 1114886
S/N: 01981372
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0311 |
| Cutting Width (mm) | 0.79 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Maximum Depth of Cut (mm) | 1.27 |
| Insert Material | Carbide |
| Manufacturer Grade | KC850 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0035 |
| Corner Radius (mm) | 0.09 |
| Rake | Positive |
| Insert Size | 2031 |
| Material Grade | C5, C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | CVD |
| Rake Angle | 10 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| Included Angle Degree | 55 |
| Coating/Finish | TiC, TiCN, TiN |
